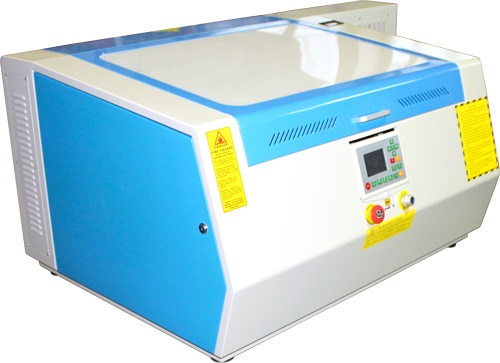

Laser engraving machine Lestar 5030
Laser engraving machine Lestar 5030 - Laser engraving machine with a working area size of 500 x 300 mm.
Price on request
- Weight, kg: 80
- Type of processing: Cutting and Engraving
- Laser emitter wavelength: 10640 nm
- Additional options: rotary cylinder engraving device
- Machine category: Universal
- Number of voters: 3
- Limit sensors: inductive
- Transmission mechanism: timing belt
- Min. character size: 1.5x1.5 mm
- Laser emitter power: 40 W
- Processed materials: Wood, plywood, double-layer plastic, ABS, PET, MDF, chipboard, polystyrene, plexiglass, acrylic, monolithic polycarbonate, cellular polycarbonate, polystyrene foam, paronite, rubber, painted metal, anodized aluminum, paper, cardboard, glass, ceramics, stone, leather, leatherette, textiles, felt
- Control panel/Display: 4.3" TFT color
- Supported formats: CDR, AI,PLT, DXF, DST, BMP, JPG
- Energy consumption (kW): 1.5
- Software: RDCAM compatible with 32 and 64 bit WINDOWS 10 and below
- Emitter manufacturer: LASEA
- Working field size: 500x300mm
- Laser power adjustment: software, hardware
- Gearbox (X/Y/Z): belt
- Emitter resource: up to 10,000 hours (at rated power)
- Cooling system: liquid, submersible pump
- Control system: RuiDa RDC6442
- Engraving speed: 0-800mm/s
- Cutting speed: 0-500mm/s
- Table: lifting motorized, cellular
- Motor type: microstepping, three-phase
- Laser emitter type: CO2
- Type of guides, X/Y/Z: linear rail THK
- Type of equipment: case-based, desktop, non-separable
- Drive type: separate
- Positioning accuracy: ±0.01mm
- Room Requirement - Temperature/Humidity: 10°C ~ 45°C, 5% - 95%
- Guide width: 15mm
- Power supply: AC 220V 50 Hz
