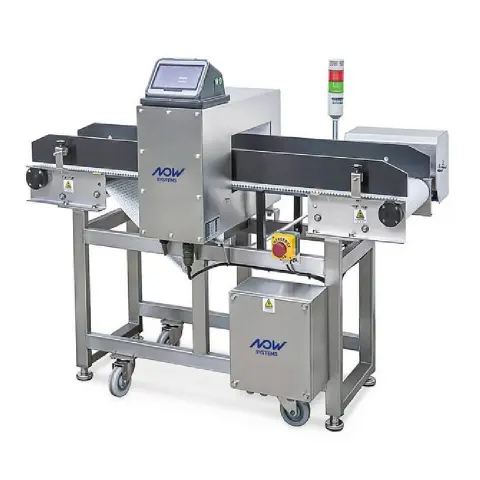

Conveyor metal detector NowSystems NMD-580
Metal detector NowSystems NMD-580 conveyor Designed to control product testing for the content of foreign metal particles of iron, stainless steel, etc., which are foreign to the product. Applicable in the following areas: Food industry - to detect the presence of metal particles that should not enter the digestive system of humans or animals along with food: - finished products; - medicines; - meat products; - fish products; - agricultural products; - confectionery, baked goods; - animal feed. Clothing/Footwear/Apparel industry – for detecting metal particles that are harmful to humans. - cloth; - shoes; - soft toys. Industry – to detect metal particles in raw materials and finished products, as well as to prevent damage to industrial equipment. - rubber products; - chemical industry; - recyclable materials. Features and Benefits: The latest updates over the NMD-530 metal detector include a new design with a more compact size and improved materials (high-density molded plastic housing and improved internal gaskets) that provide improved waterproof performance. New noise filters have been installed, located on the main board, which increase the noise shielding ability, reducing interference from neighboring equipment, increasing the accuracy and stability of the detector. The auto-tuning feature has also been updated. Equipped with a multi-frequency frame with the ability to automatically select the scanning frequency to determine minimal metal particles in dry and wet products (no labor-intensive and lengthy frequency selection process performed manually by the operator). Automatic phase angle selection allows you to automatically select the detection level and phase angle when tuning to a product. This is relevant for products that change physical properties over time, for example frozen products in a warm room. 7-inch color touch display (intuitive, Russified and easy to use). Digital signal processing with 32-bit microprocessor for increased performance. Software filter technology is used to absorb external interference that affects the operation of the system. Saving optimal settings for each product due to the internal memory for 100 individual programs. Connection to external devices: - recording the system operation log to removable media via a USB port, transferring data to a PC; - monitoring the operation of one or several metal detectors in real time using a LAN connection; - interaction of the system with third-party equipment / devices using the RS232C or RS485 port. High-performance metal detector: - closed coil winding system for better scanning; - high-quality filtration system for more accurate detection; - function of absorbing external noise and interference. Automatic adjustment to the product, and the function of auto-learning of the metal detector for scanned products is intuitive even for novice users. Modern and hygienic design with emphasis on convenience and beauty. Possibility of keeping a log of system operation with classification into different periods (day / week / month / specified period). Output data to the screen, to a USB drive or to a printer (optional). Simple and quick software update from an external drive via USB port. Three levels of access with individual rights (three-level password system) for each user: operator, manager, engineer. Manba: https://www.nv-lab.ru/catalog_info.php?ID=9493
- Parameter: Value
- Tunnel dimensions (W × H), mm: 200 – 550 × 100 – 300
- Product dimensions (W × H), mm: 150 – 550 × 70 – 270
- Expected sensitivity, mm: Fe – Ø 0.5 – 1.5;
- SUS304 – Ø 0.8 – 2.0
- Conveyor length, mm: 1000 – 2000
- Conveyor height, mm: 500 – 1500 (+50 & -20)
- Conveyor speed, m/min: constant – 22;
- variable – up to maximum 44
- Preset settings per product: 100 pcs.
- Rejection systems: Line stop, sound and light alarm, automatic rejectors (optional)
- Aperture (frame) protection class: IP66
- Operating temperature range, °C: from 0 to +50
- Single-phase AC power supply (voltage/frequency): 220 V
- 50/60 Hz
