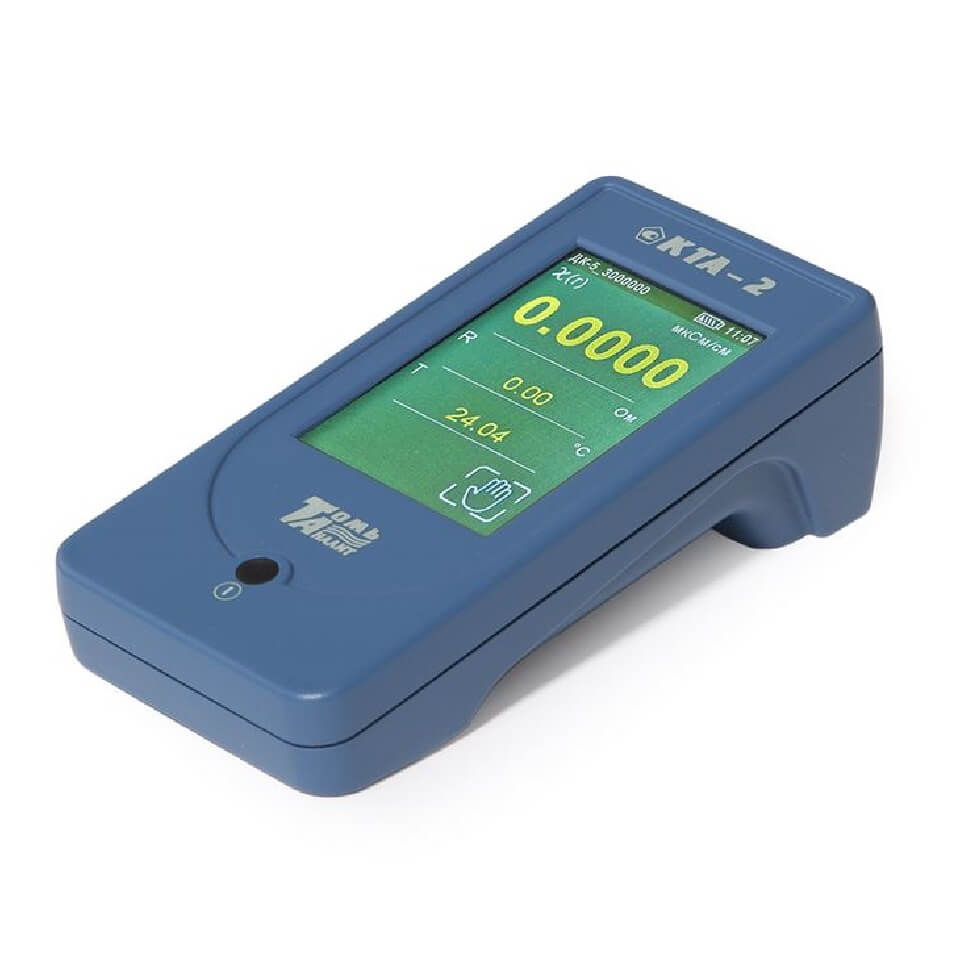

Conductometer / pH meter KTA-2
Conductometer / pH meter KTA-2 It is a representative of a new generation of multifunctional high-precision instruments with a touch control panel. Designed for measurements of pH, specific electrical conductivity (SEC), mass concentration of salt in terms of NaCl (salt content), mass concentration of dissolved salts (TDS) and oxidation-reduction potential (ORP) in liquid media with simultaneous temperature measurement. Distinctive features: color display with touch control panel and intuitive interface; ability to work with any type of combined electrodes for pH measurement (BNC connector); The conductivity meter does not require calibration, but calibration is included in settings functions and can be used to adjust coefficient (constant) of the conductometric sensor and during verification; the presence of the “Thermal compensation” option, which allows for measuring the electrical conductivity, adjusted to a user-specified temperature (in the range from 5 to 80 °C; by default - to 25 °C); to maintain high accuracy of measurements of the given UEP, a choice of thermal compensation option is available, taking into account the characteristics of the liquid being analyzed: for especially pure solutions; for weak electrolytes; for strong electrolytes; to measure small UEP values, use a two-electrode sensor DK-2 (Ø14 × 142 mm; weight with cable 70 g); to measure high SEP values, a patented five-electrode conductometric sensor DK-5 (Ø14 × 157 mm; weight with cable 60 g) is used; the sensors have a built-in temperature sensor; the electrodes in the sensors are made of stainless steel steel; the design of the sensors ensures convenient measurements and ease of cleaning; availability of an option for auto-detection of buffer solutions; measurement results are stored in an archive and available for viewing (memory for 149,000 measurement results); powered by any of the following methods: from the built-in battery / from the network / from a computer; continuous operation from the built-in battery for 13 hours; KTA-2 can be recharged using a wireless charger (included in the delivery package if approved at the purchase stage). Scope of delivery: Conductometer / pH meter KTA-2. Sensor DK-2, DK-5 or both sensors (depending on the selected configuration). Combined electrode for pH measurement (as agreed upon at the purchase stage). Thermal sensor. Charger with USB connector. USB-C connecting cable. Operation manual. Verification method. Sensor passport (depending on the selected configuration). Manba: https://www.nv-lab.ru/catalog_info.php?ID=9985
- Parameter: Value
- Temperature measurement range, °C: from 0 to 80
- Limits of permissible error of temperature measurements, °C: ±0.3
- Hydrogen index measurement range, pH: from 0 to 14
- Limits of permissible error in measurements of the hydrogen index, pH: ±0.05
- UEP measurement range, µS/cm:
- - with sensor DK-2;
- - with sensor DK-5: from 0.01 to 1000;
- from 10 to 100,000
- Limits of permissible error of UEP measurements, µS/cm:
- - with sensor DK-2;
- - with sensor DK-5: ±(0.003+0.015c) *;
- ±(0.05+0.025c) *
- Range of measurements of salt content (mass concentration of dissolved salts in terms of sodium chloride), mg/dm3:
- - with sensor DK-2;
- - with sensor DK-5: from 0.01 to 500;
- from 4 to 50,000
- Limits of permissible error in measurements of salt content (mass concentration of dissolved salts in terms of sodium chloride), mg/dm3:
- - with sensor DK-2;
- - with sensor DK-5: ±(0.02+0.02CNaCl);
- ±(0.2+0.025CNaCl)
- Power consumption, VA, no more:
- - in working mode;
- - in battery charging mode from an external charger: 1.0;
- 3.0
- Overall dimensions, mm, no more: 75 × 163 × 53
- Weight, kg, no more: 0.3
- Mean time between failures, hours, not less than: 5000
- Average service life, years, not less: 5
