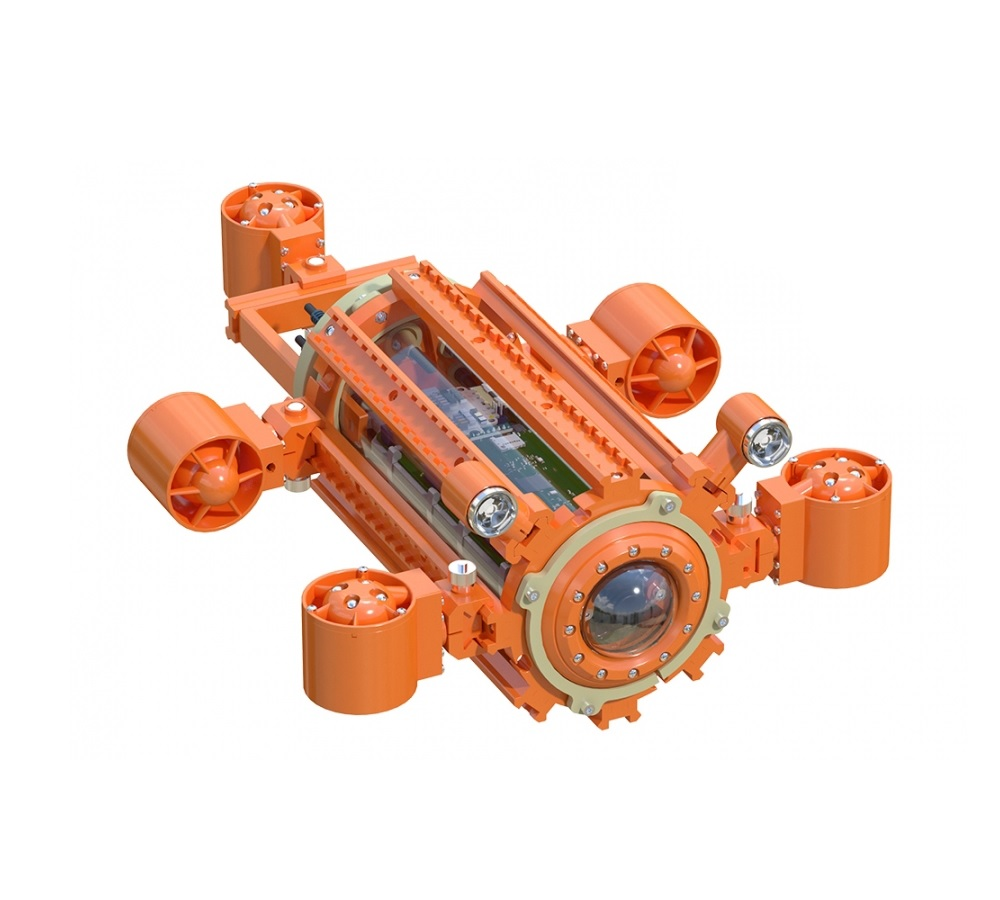

Oceanika Bathyscaphe underwater robotics kit
Oceanika Bathyscaphe is your smart robot capable of working in sea and fresh water. Full control of the underwater robot is carried out using the control panel, which is supplied in the kit. When controlling, you can control the speed of movement of the robot underwater (3 speed modes). The robot is equipped with an external navigation module, which includes sensors: six-axis gyroscope-accelerometer; three-axis magnetic compass; pressure sensor, temperature sensor The basis of the Oceanika Bathyscaphe robot is a Raspberry Pi3 microcomputer Oceanika Bathyscaphe will give you unforgettable emotions and allow you to explore the underwater world even more interestingly Capable of diving to a depth of up to 50 meters, both in fresh and salt water Record video and take photos underwater on a mobile device and save it in memory Take pictures with a resolution of 8 megapixels and record FullHD video Ability to turn on/off powerful flashlights with brightness adjustment Five motors allow you to move in 6 directions: up, down, forward, backward, right and left Transmit data on the state of the robot systems to the display of your mobile device Collect objects, lift iron objects, monitor water conditions Move underwater at three different speeds of your choice Take photos and videos underwater and simultaneously view the resulting images Maintain connection with a mobile device at a distance of up to 30 meters
- Contents: More than 200+ different parts in a box Hermobox with electronics module - 1 pc. Control panel - 1 pc. Photo-video camera - 2 pcs. Navigation module with a set of sensors - 1 pc. Water leakage sensor - 1 pc. Communication cable - 5 meters Communication buoy - 1 pc.
- Immersion depth: 50 meters
- Maximum speed: 1.5 m/s
- Working time: 60 minutes
- Processor: Raspberry PI3
- Photo-video camera: FullHD
- Control panel (Underwater robot control): 1 pc.
- Operating systems (Underwater robot control): Raspbian or ROS
- Mobile application (Control of an underwater robot): Oceanika Nav (Android, IOS)
- Camera Type (Camera): CMOS
- Viewing Angle (Camera): 120 degrees
- Mount (Camera): Fixed
- Tilt angle to horizon (Camera): 0 degrees
- Resolution (Camera): 720p (1280x720) - FullHD
- Quantity (Camera): 2 pcs.
- Flashlights (Lighting): 2 x 100 lumens
- Beam Angle (Illumination): 140 degrees
- Energy (Lighting): Powered by drone
- Location (Lighting): Anywhere
- Type (Motor): Brushless, Removable
- Quantity (Engine): 5 pcs.
- Speed (Engine): up to 3000
- Voltage (Motor): 12 volts
- Peak Current (Motor): 30 amps
- Communication (Communication Buoy): Wi-Fi
- Wi-Fi range (Communication buoy): 30 m
- Dimensions: (Hermobox): 21 cm x 8 cm
- Electrical connectors: (Hermobox): 4 Pin - 8 pcs., 8 Pin - 1 pc.
- Capacity (Battery): 56 Wh
- Operating time (Battery): 60 min
- Charging time (Battery): 3 hours
- Power Source Type (Battery): Li-Po
- Diameter (Communication Cable): 5mm
- Length (Communication cable): 5m
- (Communication cable): 6-core silicone sheathed cable
- Operator: 1 person to launch/lift, control the robot
- Control panel: photo shooting modes, video recording modes, motor locking/unlocking, depth and pitch fixation, light on/off, brightness adjustment (3 brightness modes), speed change (3 speed modes), signal when connection is lost/inactivity for more than 5 minutes, ascent when connection is lost
- Sensors: External navigation module with a set of sensors, six-axis gyroscope-accelerometer, three-axis magnetic compass
- Overall dimensions: 37 cm×26 cm×15 cm (Dimensional deviations are possible ±5%.)
- Total weight: 2 kg
