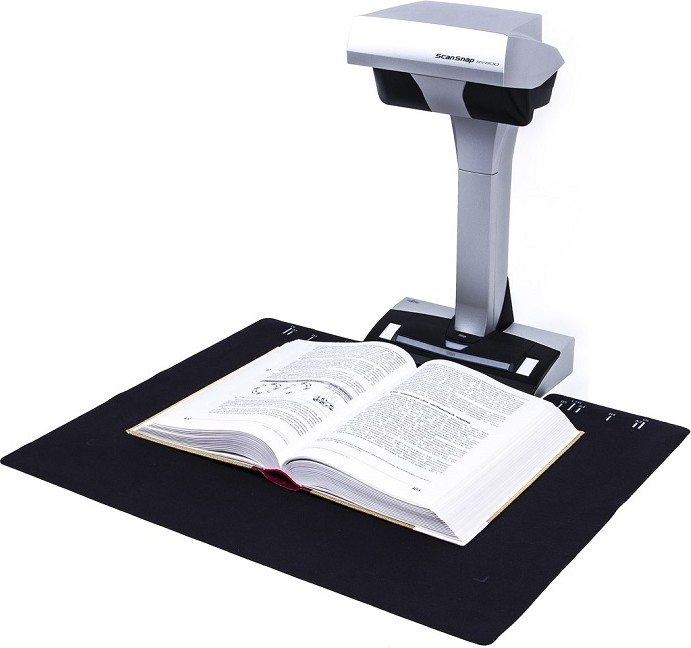

Book scanner Fujitsu-Ricoh ScanSnap SV600
The Fujitsu ScanSnap SV600 is an easy-to-use, compact projection book scanner designed for fast, bulk scanning of thick or worn materials that classic flatbed or broach scanners cannot handle. The ScanSnap SV600 makes it easy to scan thick hardcover books, old document files, newspapers and work materials with minimal damage to the materials. This scanner will significantly speed up the work of the department entering information into an electronic database at large enterprises and institutions, and will also be useful in archives and libraries. The Fujitsu ScanSnap SV600's small size and quick deployment make it an excellent choice for companies engaged in professional document digitization. The field team can scan directly into the client's archive. Fujitsu ScanSnap SV600 is a representative of a relatively rare type of scanning devices - projection scanners. The fundamental difference between these devices and flatbed scanners is that the photodetector array moves in the focal plane of the lens, and not together with the lens, as in flatbed scanners. The second fundamental feature of projection scanners is that the distance between the lens and the scanned object can be arbitrarily changed, therefore the resolution of such scanners is determined not in dots per inch of the image, but in dots of the entire image. The image of a small and large object will have the same number of dots, and accordingly, for a small object the resolution in dots per inch will be very large, and for an object located at infinity it will be very small. The main advantage of scanners of this type is the ability to scan not only documents on individual sheets of paper, but also thick hard-bound books and tightly bound documentation. In addition, it is possible to scan other objects, including three-dimensional ones, depending on the depth of field settings of the optical system. Projection scanners do not come into contact with the surface being scanned, so they are well suited for digitizing old documents that might be damaged during normal scanning.
- Scanner type: Projection system, single-sided scanning
- Scan Modes: Color, Grayscale, Monochrome, Auto (with color detection: Color/Grayscale/Monochrome)
- Image Sensor: Zoom Lens/Color CCD x 1
- Light source: White LED lamp and illuminated lenses - 2 pcs.
- Optical resolution: Horizontal scanning: 285 - 218 dpi Vertical scanning: 283 - 152 dpi
- Scan speed (A3, landscape): Automatic mode
- Standard Mode: Color/Grayscale: 150 dpi, Monochrome 300 dpi: 3 seconds/page
- Enhanced Mode: Color/Grayscale: 200 dpi, Monochrome 400 dpi: 3 seconds/page
- Best Mode: Color/Grayscale: 300 dpi, Monochrome 600 dpi: 3 seconds/page
- Excellent Mode: Color/Grayscale: 600 dpi, Monochrome 1,200 dpi: 3 seconds/page
- Document Size: Auto Document Size Detection, A3 (Landscape), A4 (Landscape), A5 (Landscape), A6 (Landscape), B4 (Landscape), B5 (Landscape), B6 (Landscape), Postcard, Business Card, Double Letter (Landscape), Letter, Legal (landscape) and custom size (max: 432 x 300 mm), min: 25.4 x 25.4 mm)
- Document thickness: No more than 30 mm
- How to start scanning: Select one of the following options. 1. Normal Scan: Press the Scan button for each page 2. Scan at a specified time interval (Timed Mode) 3. Detect reversed pages
- Interface: USB 2.0/USB 1.1 (type B connector)
- Image processing functions: Alignment of distortions in document text Automatic paper size detection, automatic image rotation, Automatic color recognition, book image correction Function for detecting documents of different sizes
- Vertical scan magnification (length): ±1.5%
- Green Compliant: ENERGY STAR®/RoHS/EPEAT Silver certified
- Driver: Custom Driver: *Does not support Twain/ISIS®
- Included Items: Power cord, AC adapter, USB cable, mat, installation DVD, Nuance® Power PDF Standard/Nuance® PDF Converter for Mac, extenders (x2)
- Power requirements: 100 V to 240 V AC. current with a frequency of 50/60 Hz
- Power consumption: In operating mode: no more than 20 W In sleep mode: no more than 2.6 W In operating mode: no more than 0.4 W
- Operating environment: Temperature: 5-35°C Relative humidity: 20-80% (non-condensing)
- Dimensions (W x D x H): 210 x 156 x 383 mm
- Device weight: 3 kg
