Interactive equipment

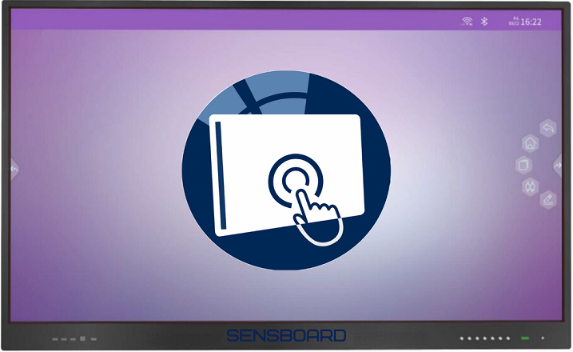

Interactive panel SenseBoard SB-4K75A
The SenseBoard SB-4K75A interactive panel is a worthy alternative to interactive whiteboards and projectors.
Price on request
- Interactive software for Windows: included (SensTudio)
- Screen diagonal: 75"
- Active screen size: 1650x928
- Form factor: 16：9
- Resolution: 3840*2160 Pixel (4K)
- Color: 10bit, 1.07B
- Brightness: 350cd/m2
- Contrast: 4000:1
- Response time: <10ms
- Viewing angle: 178
- Service life: Minimum 50,000 hours
- Power Consumption: Maximum <300w Standby ≤0.5W
- Operating voltage: AC 100-240V, 50/60Hz
- Screen orientation: Landscape
- Screen surface material: Tempered glass
- Hardness: >H7
- Technology: Infrared Touch
- Number of touches: 40 Windows 10 Android
- Cursor speed: 120Point/s
- Recognition accuracy: ±2mm
- Recognition distance: ≤3mm
- Speakers: 15W*2
- Light sensor: yes
- Installation: Wall/floor
- VESA Mount Size: 600x400mm
- Chipset:MSD811
- CPU: Dual-core A73 and dual-core A53
- GPU: Quad-core MaliG51
- RAM: 4G
- ROM: 32G
- Android version: 8
- WIFI: built-in
- Stylus: 2
- Wall mount: included
- Front panel buttons: On/Off, Screen off, Return, Home page, Volume +, Volume -, Menu, Input source
- Connectors on the front of the panel: USB 3.0*3 Touch out USB B type*1 HDMI *1
- Connectors on the back of the panel: USB Type-C*1 USB2.0*2 USB 3.0*1 HDMI 2.0 In*1 HDMI 2.0 In (CEC&ARC)*1 HDMI 2.0 Out*1 Display port*1 Audio Output Analog*1 (3.5mm headphone Jack PJ3591 Female) Audio Output Digital*1 (RCA Composite Female) RS232*1 (Sub - D, 9 Pins) USB Touch port*3 (USB - B Female) RJ45 in*1 RJ45 out*1 VGA/DVI are Optional
- Overall dimensions: 1692x1022x98mm
- Overall dimensions in packaging: 1842x1166x222
- Net weight: 43kg
- Gross weight: 55kg
