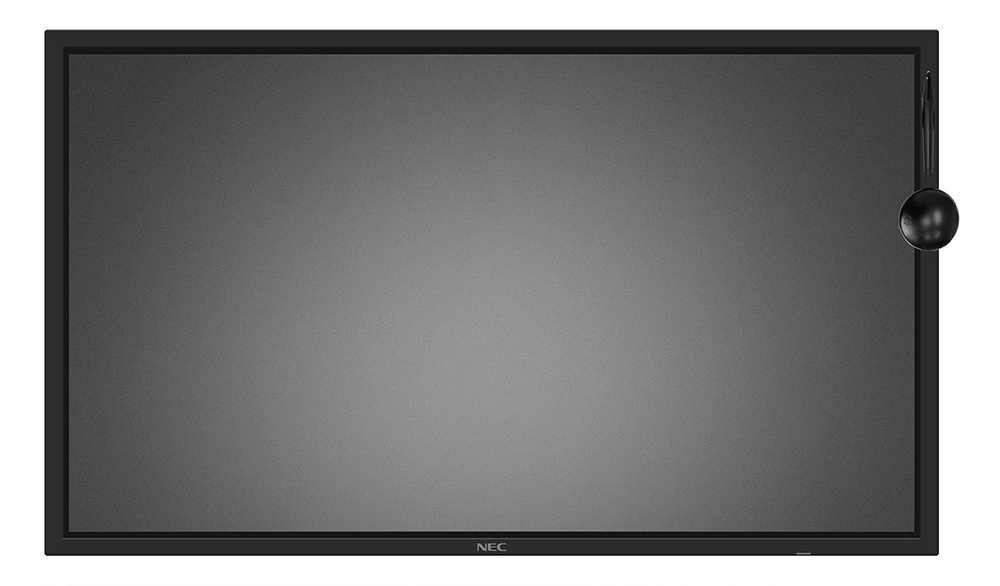

Interactive panel NEC C981Q SST
Previously you watched Company About the company Privacy Policy Help Terms of Payment Terms of Delivery Details Information Blog Questions and Answers Brands Stay informed! Be the first to know about discounts and promotions Store news Our contacts +7 800 707-14-06 +7 800 707-14-06 info@school-store.ru Moscow, st. Krasnobogatyrskaya 89с1 © LLC "EDUCATIONAL SOLUTION" 2017—2026. All offers are not a public offer. Print version Find marketnig popups 'start_frame_cache_V62bio' 'end_frame_cache_V62bio' /marketnig popups 'start_frame_cache_basketitems-block' 'end_frame_cache_basketitems-block' 'start_frame_cache_all-basketitems-block' 0 0 0 Cart 'end_frame_cache_all-basketitems-block' if(!window.BX)window.BX={};if(!window.BX.message)window.BX.message=function(mess){if(typeof mess==='object'){for(let i in mess) {BX.message[i]=mess[i];} return true;}};
- Scope of application: for office
- Panel Type: IPS Direct LED Backlit
- Resolution: 3840x2160
- Screen area (w x h): 2,158.9 x 1,214.4 mm
- Screen size: 98" / 248 cm
- Brightness: 350 cd/m?
- Contrast: 1300:1
- Viewing Angle: 178° / 178°
- Response time: 8ms
- Possible arrangement: vertical/horizontal
- Horizontal scan frequency: 31.5 - 91.1 kHz
- Vertical refresh rate: 24 - 85 Hz
- Digital video input: 2 x DisplayPort (HDCP); 3 x HDMI (HDCP)
- Audio input analog: 1 x 3.5 mm
- Audio input digital: 2 x DisplayPort; 3 x HDMI
- Control input: 1 x LAN 100Mbit; 1 x Remote Control (3.5 mm jack); 1 x RS232
- Input Data: 1 x microSD (Value); 1 x USB 2.0 (Downstream); 1 x USB 2.0 (MediaPlayer); 1 x USB Type-B (Upstream); 2 x USB 2.0 (Compute Module, 1 x 5V/2A powered)
- Video output digital: 1 x DisplayPort (loop through: DisplayPort, OPS slot-in PC)
- Audio output analog: 1 x 3.5 mm Jack
- Control output: 1 x LAN 100Mbit
- Presence sensor: Optional, outdoor, 4-5 m range, software controlled operations enabled
- Temperature Sensor: Built-in, 3 sensors, software controlled operation activated
- NFC Sensor: Integrated, 2cm range, requires NEC Android app
- Power consumption: 252 W
- Power consumption in standby mode: 0.5 W
- Power Management: VESA DPMS
- External temperature: +0 to +30
- Humidity: 20 to 80%
- Glass thickness: 5 mm
- Glass type: Premium tempered safety glass with one-sided anti-reflective coating
- Light transmittance: 92%
- Touch technology: ShadowSense™ Touch
- Touch Points: True multi-touch support for up to 10 touches
- Response time: 6 to 8 ms
- Input method: Fingers; Gloves; Stylus (? 2 mm)
- Driver: Native multi-touch support: Windows 7, Windows 8, Windows 10, Linux, Android; default mouse: Windows XP, Windows Vista, Mac OS X
- Data transfer protocol: USB 2.0 (max. speed) HID; via USB, plug & play
- Accuracy: <2mm
- Touch Resolution: 12-bit (4096 x 4096)
- Attenuation of internal and external images: In bright sunlight (approx. 100,000 lux)
- Supported Image Formats: JPG (baseline, progressive, RGB, CMYK); max. resolution 5000 x 5000; PNG (interlace, alpha channel); max. resolution 4000 x 4000
- Supported Video Formats: MP4/MOV/FLV (H.264 video, MP3 audio, AAC); max. resolution 1080p at 30 Hz, 1080i at 60 Hz; MPG (video mpeg1/2, audio mpeg audio layer2/3, AAC-LC); MP@ML, MP@HL; WMV (video H.264, wmv L3, wmv profiles simple / main, audio mp3 wmv std); max. resolution 1080p at 30 Hz, 1080i at 60 Hz
- Supported Audio Formats: MP3 (MP3); max. bit-rate 320 kBit/s; WAV(LPCM); max. 48 kHz sampling
- Supported File Storage / File System: MicroSDHC / FAT16, FAT32; USB 2.0 / FAT16, FAT32
- Opening hours: 24/7
- Frame width: 35 mm (top and bottom); 35 mm left/right
- VESA Mount: 4 holes; 400 x 400 (FDMI); 600 x 400 (FDMI); M8
- Shell protection degree: IP5x (front); IP2x (rear)
- Dimensions (W x H x D): 2,256.5 x 1,310 x 110.7 mm
- Weight: 135 kg
