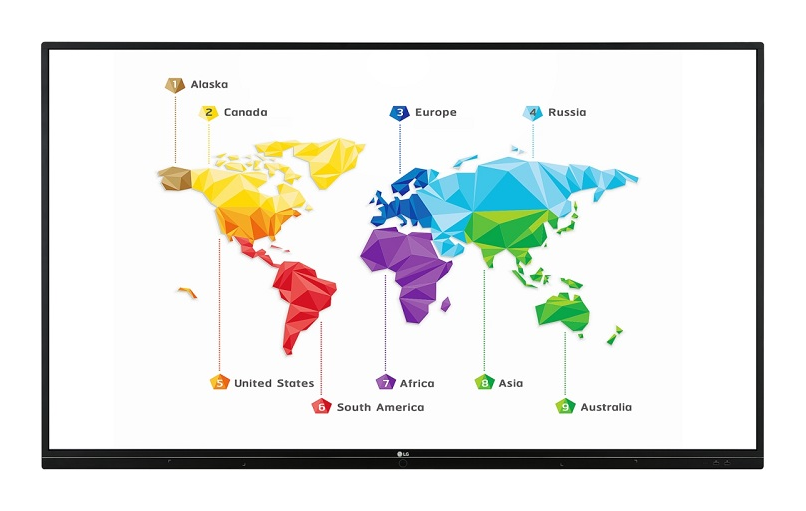

Interactive panel LG 86TR3E-B
Featuring advanced touch technology, the 86TR3E-B series supports multi-touch and inking functions, delivering precise drawing and true touch quality. Plus, Air Class and a built-in web browser support content sharing and interactive learning to help you succeed in business. Multi-touch and handwriting input The screen accurately detects even the smallest touch points and responds instantly with feedback. TR3BF series interactive displays support up to 20 simultaneous touches and 10 writing points, as well as two types of styluses. Having written input greatly improves collaboration productivity. Palm erasing You will appreciate the convenience of erasing texts and drawings with the palm of your hand instead of a stylus. You will be able to feel more natural, as if you are working with a real board. Air Class wireless connection The Air Class feature supports wireless connectivity for up to 30 mobile devices, providing various tools such as voting, polls and project text sharing. Screen sharing The TR3BF display series allows you to share screen content and files with laptops and other mobile devices. This is a complete way to improve collaboration efficiency. Web browser The TR3BF series supports a web browser on Android OS, so you can quickly and easily search the Internet without connecting to an external desktop. All in one The TR3BF series integrates Android and Note apps into a high-performance SoC and can multi-task even without a media player or PC. Accurate color reproduction True Color The TR3BF series brings richer multimedia content to visitors. The IPS panel displays content clearly from multiple angles, no matter where visitors are sitting. Each pixel of the IPS panel reproduces the original color of the image without distortion.
- Screen size: 86"
- Resolution: 3840x2160
- Screen aspect ratio: 16:9
- Brightness: 330 cd/m² (w/Protection Glass)
- Contrast: 1100:1
- Technology: IPS
- Viewing Angles: 178 x 178
- Response time: 8ms (G - G)
- Speakers: Built-in 24W (12W + 12W)
- Input: HDMI (3), RGB / Audio In, RS232C In, RJ45, USB 2.0 (3, Front: 2x, Bottom side: 1x, Only for software update), USB 3.0 (3), Touch Out (USB2.0, B Type) (2)
- Output: HDMI (1), Optical Output / Audio Out
- Sensor type: IR
- Minimum object size to touch: 3 mm
- Accuracy: 1.5mm
- Glass protection: 4T (Anti-glare)
- Interface: USB 2.0
- Multi-touch: up to 20 touches / 10 in handwriting mode
- OS: Windows 7/8/10/WindowsXP/Linux/Mac/Android (WindowsXP/Linux/Mac Support one point touch)
- Safety: UL/cUL/CB/ErP
- EMC: FCC Class "A" / CE
- OPS Compatible: Yes
- SuperSign Premium: Yes
- SuperSign Link: Yes
- Standard VESA mounting connector: 800 x 600
- Power supply: 100~240V, 50/60Hz
- Power Type: Built-in Power Supply
- Power consumption: 400W/max. 450 W
- Operating temperature: 0°C to 40°C
- Basic kit: Power cable 3 m, USB cable (Type A-Type B) 5 m, HDMI cable 3 m, stylus (pen) x 2, manual, remote control
- Humidity during operation: from 10% to 80%
- Frame Width: 17.7mm (Top/Left/Right), 45.7mm (Bottom)
- Case: 1957 x 1160 x 86 mm
- Weight (without stand): 67 kg
- Package size (W x H x D): 2230 x 1499 x 285 mm
- Weight (with packaging): 109 kg
