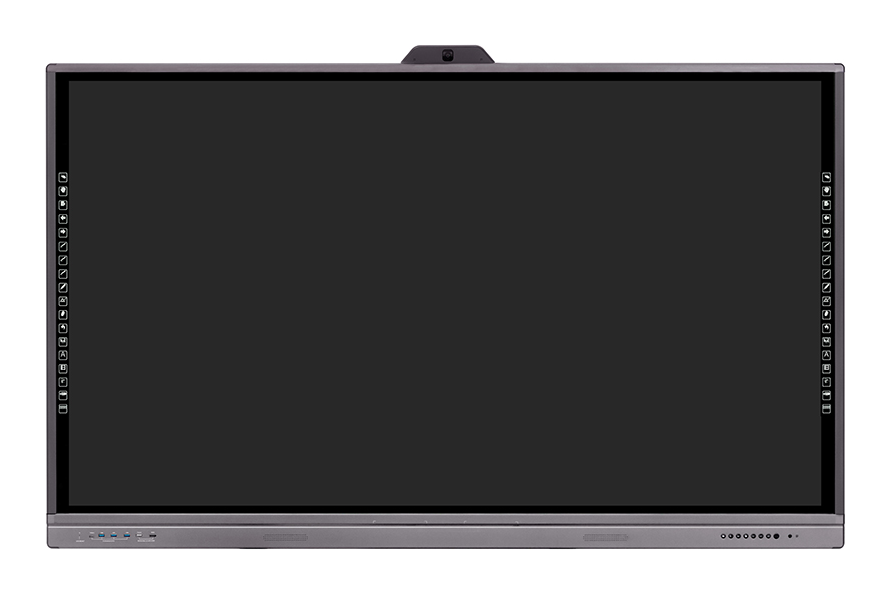

Interactive panel EDFLAT ED98CT

The EDFLAT ED98CT interactive panel is designed to make the learning process visual and interesting. It is ideal for educational institutions, as well as for conducting distance lessons. The high-quality 4K screen delivers ultra-clear resolution, delivering vibrant images that show every detail down to the last detail. Infrared Touch technology recognizes up to 32 touch points using a finger, palm or stylus. You can view various images, presentations, create drawings and write text, as well as connect to the Internet and view sites necessary for study. EdFlat interactive panels come with software that allows you to conduct training, perform everyday office tasks and work with most file formats.

• Diagonal, inches: 98"
• Backlight: LED
• Screen type: a-Si TFT-LCD
• Active area: 2233 x 1248 mm. (including hot buttons) 2160 x 1216 mm.
• Format: 16:9
• Resolution: 3840×2160 (4K)
• Color rendering: 1.07B (10 Bits)
• Brightness: 500 cd/m2
• Contrast: 1500:1
• Viewing Angle: 178 degrees
• Protective glass: Tempered glass and anti-glare coating. Reflectance <1%
• Glass hardness: 7 Mhos
• Number of touches: 32 Windows, 20 Android
• Sensor response time: 7 ms.
• Touch Sensing Technology: IR
• Screen thickness: 4 mm.
• Built-in speaker: 2 x 20 W
• Lifespan: 120,000 hours
• Light sensor: Yes
• Hot keys: Yes
• Camera with tilt angle adjustment (optional): 8Mp, horizontal view - 90 degrees, manual adjustment.
• Microphone (optional): Omnidirectional, sensing distance - 8m - 6 pcs.
• Platform: Android 8.0 OS, CPU: Cortex A73 x 2+A53 x 2 1.5GHz, GPU: MaliG51 x 4, RAM: DDR4 4G 2400MHz, ROM: 32G
• Android version: 8.0
• OPS PC: OPS JAE 80-pin
• WIFI: M.2 2230 WIFI 802.11ac
• Built-in Bluetooth: 5.0
• Connectors on the front panel: HDMI 2.0 - 1 pc. USB 3.0 (Type A) - 3 pcs. (for Android and OPS Type C - 1 pc. Touch USB 2.0 (Type A) - 1 pc.
• Connectors on the rear panel: DP 1.2 in - 1 pc. HDMI 2.0 in - 1 pc. VGA in - 1 pc. VGA Audio(3.5mm) in - 1 pc. AV in - 1 pc. RJ45 in - 1 pc. Type-C - 1 pc. (4K video transmission) Touch USB 2.0 (Type A) - 1 pc. Public USB 3.0 (Type A) - 2 pcs. (for Android and OPS) USB 2.0 (Type A) - 1 pc. (for Android) HDMI 2.0 out - 1 pc. RJ45 out - 1 pc. Spdif out (Optical) - 1 pc. Headphone out (3.5mm) - 1 pc. RS232 - 1 pc. WIFI antenna - 3 pcs.
• Contents: Stylus 2 pcs. Power cable 3 m. 1 pc. HDMI cable 5 m 1 pc. USB cable A-A, 5m 1 pc. User manual Data sheet Remote control with pointer and mouse function
• Power consumption: AC:100-240V; 60/50Hz 660W; <3.5W (standby)
• Dimensions (with camera): 2311 x 1351 x 121 mm.
• Weight: 159 kg.
• Package weight: 219 kg.
