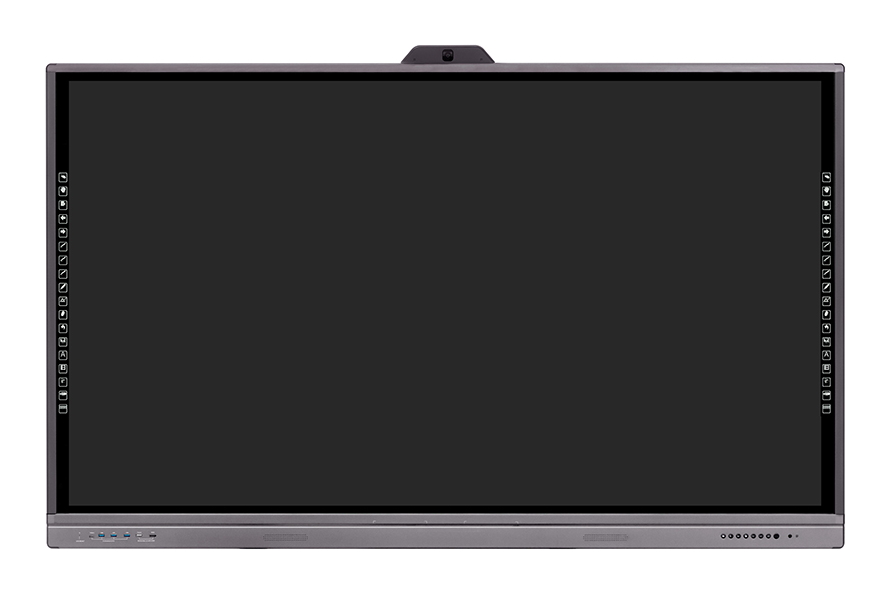

Interactive panel EDFLAT ED65CT

The EDFLAT ED65CT interactive panel is designed to make the learning process visual and interesting. It is ideal for educational institutions, as well as for conducting distance lessons. The high-quality 4K screen delivers ultra-clear resolution, delivering vibrant images that show every detail down to the last detail. Infrared Touch technology recognizes up to 32 touch points using a finger, palm or stylus. You can view various images, presentations, create drawings and write text, as well as connect to the Internet and view sites necessary for study. EdFlat interactive panels come with software that allows you to conduct training, perform everyday office tasks and work with most file formats.

• Diagonal, inches: 65"
• Backlight: LED
• Screen type: a-Si TFT-LCD
• Active area: 1484.3 x 842.5 mm. (including hot buttons) 1431.5 x 805.9 mm.
• Format: 16:9
• Resolution: 3840×2160 (4K)
• Color rendering: 1.07B (10 Bits)
• Brightness: 400 cd/m2
• Contrast: 4500:1
• Viewing Angle: 178 degrees
• Protective glass: Tempered glass and anti-glare coating. Reflectance <1%
• Glass hardness: 7 Mhos
• Number of touches: 32 Windows, 20 Android
• Sensor response time: 7 ms.
• Touch Sensing Technology: IR
• Screen thickness: 4 mm.
• Built-in speaker: 2 x 20 W
• Lifespan: 120,000 hours
• Light sensor: Yes
• Hot keys: Yes
• Camera with tilt adjustment: 8Mp, horizontal view - 90 degrees, manual adjustment.
• Microphone: Omnidirectional, response distance - 8m - 6 pcs.
• Platform: Android 8.0 OS, CPU: Cortex A73 x 2+A53 x 2 1.5GHz, GPU: MaliG51 x 4, RAM: DDR4 4G 2400MHz, ROM: 32G
• Android version: 8.0
• OPS PC: OPS JAE 80-pin
• WIFI: M.2 2230 WIFI 802.11ac
• Built-in Bluetooth: 5.0
• Connectors on the front panel: HDMI 2.0 - 1 pc. USB 3.0 (Type A) - 3 pcs. (for Android and OPS Type C - 1 pc. Touch USB 2.0 (Type A) - 1 pc.
• Connectors on the rear panel: DP 1.2 in - 1 pc. HDMI 2.0 in - 1 pc. VGA in - 1 pc. VGA Audio(3.5mm) in - 1 pc. AV in - 1 pc. RJ45 in - 1 pc. Type-C - 1 pc. (4K video transmission) Touch USB 2.0 (Type A) - 1 pc. Public USB 3.0 (Type A) - 2 pcs. (for Android and OPS) USB 2.0 (Type A) - 1 pc. (for Android) HDMI 2.0 out - 1 pc. RJ45 out - 1 pc. Spdif out (Optical) - 1 pc. Headphone out (3.5mm) - 1 pc. RS232 - 1 pc. WIFI antenna - 3 pcs.
• Contents: Stylus 2 pcs. Power cable 3 m. 1 pc. HDMI cable 5 m 1 pc. USB cable A-A, 5m 1 pc. User manual Data sheet Remote control with pointer and mouse function
• Power consumption: AC:100-240V; 60/50Hz 165W; <0.5W (standby)
• Dimensions (with camera): 1532 x 990 x 102.5 mm.
• Packaged dimensions: 1777 x 1145 x 260 mm.
• Weight: 46 kg.
• Package weight: 62 kg.
