Interactive equipment

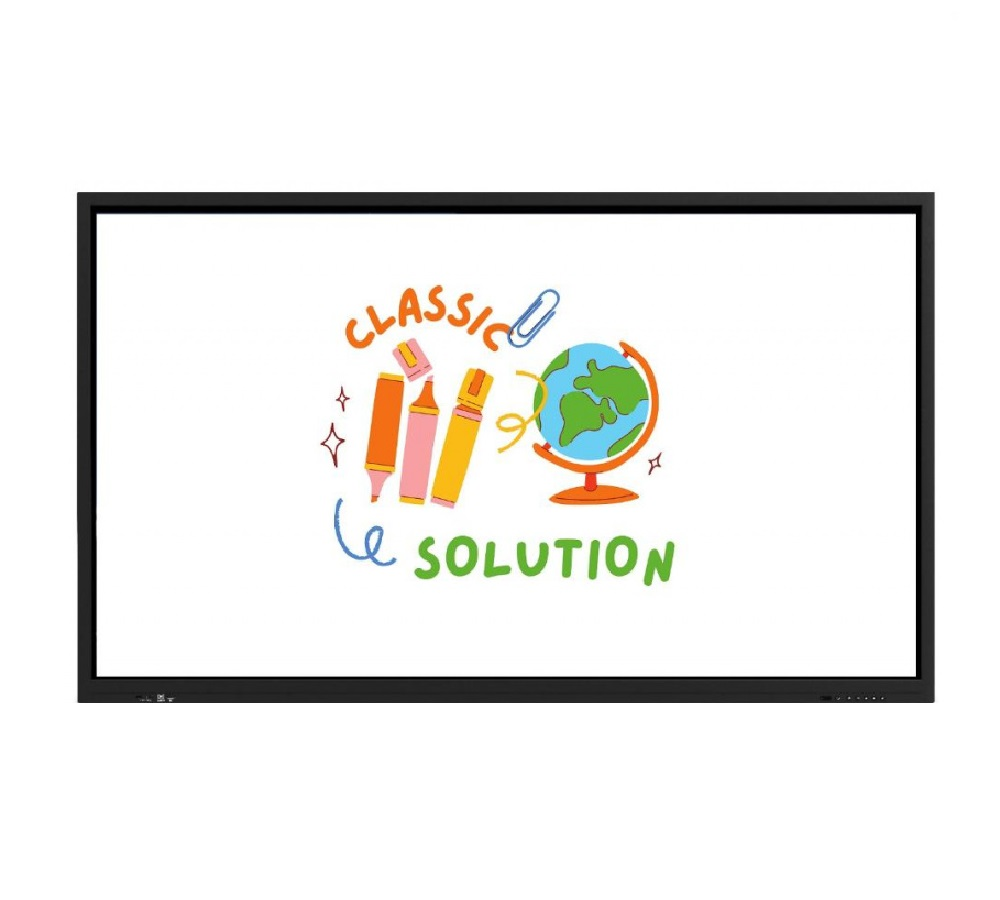

Interactive panel Classic Solution IFP-651A4K

The interactive panel Classic Solution IFP-651A4K was developed in accordance with methodological recommendations for the creation and operation of digital education centers and children's technology parks. Anti-reflective tempered glass does not reflect objects around it and has excellent resistance to mechanical stress. The included Classic Solution software allows you to use the multi-touch function to resize, move and rotate objects, make inscriptions and import pictures, edit pdf, ppt documents and much more.

• Diagonal: 65"
• Matrix backlight type: Direct LED
• Format: 16:9
• Resolution: 3840×2160
• Maximum brightness: 450 nits
• Contrast: 4000:1 (DCR ON 5000:1)
• Matrix response time: 5 ms
• Matrix service life (before brightness reduction by 50%): 50,000 hours
• Light sensor: Yes
• Viewing Angle: 178° / 178°
• Orientation (portrait/landscape): Landscape
• Touch technology: Infrared
• Operating modes: Multitouch, Multiuser
• Input methods: Finger, any non-transparent object, any non-sharp object, stylus
• Multi-Touch support in OS: Windows 7, Windows 8, Windows 10
• Sensor resolution: 32768 x 32768
• Number of touch points: 20
• Positioning accuracy: ≤ 1mm
• Protective glass thickness: 4 mm
• Strength of protective glass on the Mohs scale: 7H
• Type of protective glass: Anti-vandal, anti-reflective, frosted
• Audio output mode: Stereo
• Built-in speakers: 15W x 2
• Processor: ARM A73 (1.8 GHz)
• RAM: 4 GB DDR4 (6/8 GB DDR4 optional)
• Internal memory: 32 GB (64/128 GB optional)
• WI-FI: 2.4GHz/5GHz (802.11a/b/g/n/ac)
• BLUETOOTH: 2.1+EDR/4.2/5.0
• Installed OS: Android 9.0
• HDMI IN 2.0: 3 pcs
• HDMI OUT 2.0: 1 piece
• Display port 1.2: 1 piece
• VGA (D-sub15pin): 1 piece
• Audio input: 1 piece
• Audio output: 1 piece
• RJ45 Port (LAN 10M/100M/1000Mbps Base-T): 2 pcs
• RS-232 (COM): 1 pc.
• USB Type A: 5 pcs
• USB Type B: 2 pcs
• USB Type C: 1pc
• MIC: 1 piece
• Coaxial (SPdif): 1 piece
• VESA standard: 600 x 400 (M8)
• Color: Black
• Case material: Metal
• Mains operation: 100V-240V 50/60Hz
• Standby power consumption: ≤0.5W
• Power consumption (Standard mode): 300 W
• Physical dimensions (WxHxD): 1511 x 917 x 85 mm
• Package dimensions (WxHxD): 1650 x 1040 x 240 mm
• Weight (net/gross): 40 kg / 53 kg
