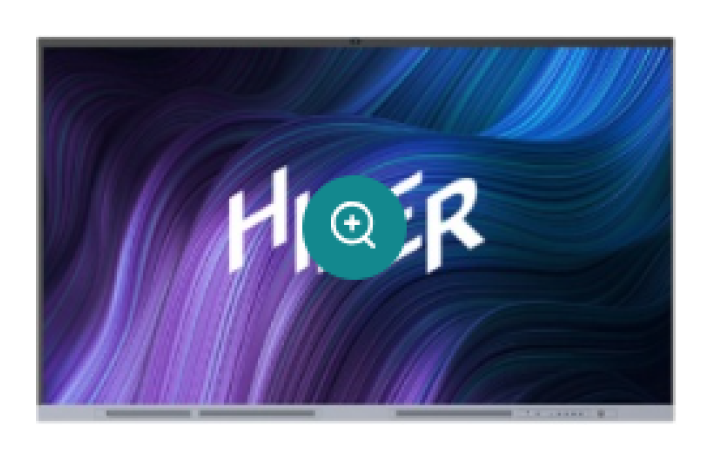

Interactive panel Hiper Touch IFP6501-HE
The Hiper Touch IFP6501-HE interactive panel combines the most advanced visualization and interactive technologies. The main goal was to create a best-in-class series of interactive panels with high image quality, maximum sensor accuracy and high protection from any external influences.
Price on request
- diagonal of the active screen area 65"
- LED backlight
- Form factor (16:9）
- Resolution 4K@60Hz
- Matrix type IPS
- Color 10bit, 1.07B
- Brightness 400cd/m2
- Contrast static/dynamic 1200:1 / 5000:1
- Response time <8ms
- Viewing angle 178°
- Operating voltage AC 180-240V 50/60Hz
- Anti-glare coating Availability
- IR sensor technology
- Mohs hardness 7
- Number of simultaneous touches 20 （Android&Windows）
- Response time 8ms
- Cursor speed 120 points/s
- Positioning accuracy ±2 mm
- Recognition distance 3 mm
- Speakers 15W x 2
- Subwoofer (optional) 20 W
- Light sensor Availability
- CPU Quad-core ARM Cortex-A55
- GPU Mali-G52 MP2(2EE)
- RAM 4GB
- ROM 32GB
- Android 11
- Bluetooth 5
- WIFI 802.11a/b/g/n/ac
- Stylus x2 pcs
- Wall mount Availability
- Camera (optional) 13 MP
- Microphone (optional) 8 pcs., omnidirectional
- Interfaces on the front panel USB TOUCH B 3.0x1
- HDMI IN x1
- Type-C 3.0 (4K video) x1
- USB3.0x3
- Rear interfaces (side) HDMI IN 2.0 x2
- USB-B TOUCH 3.0 x1
- Type-C 3.0 x1
- USB-A 2.0 x1
- USB-A 3.0 x2
- TF card*1
- DP x1
- Rear interfaces (rear) MIC INx1
- RS232x1
- Earphone/line out x1
- RJ45 IN x1
- RJ45 OUTx1
- SPDIF OUT x1
- YPBPR x1
- Audio in x1
- Audio out x1
- VGA in x1
- VGA Audio in x1
- HDMI OUT x1
- "Screen mirror" Up to 9 devices simultaneously
- Net weight 37±1 kg
