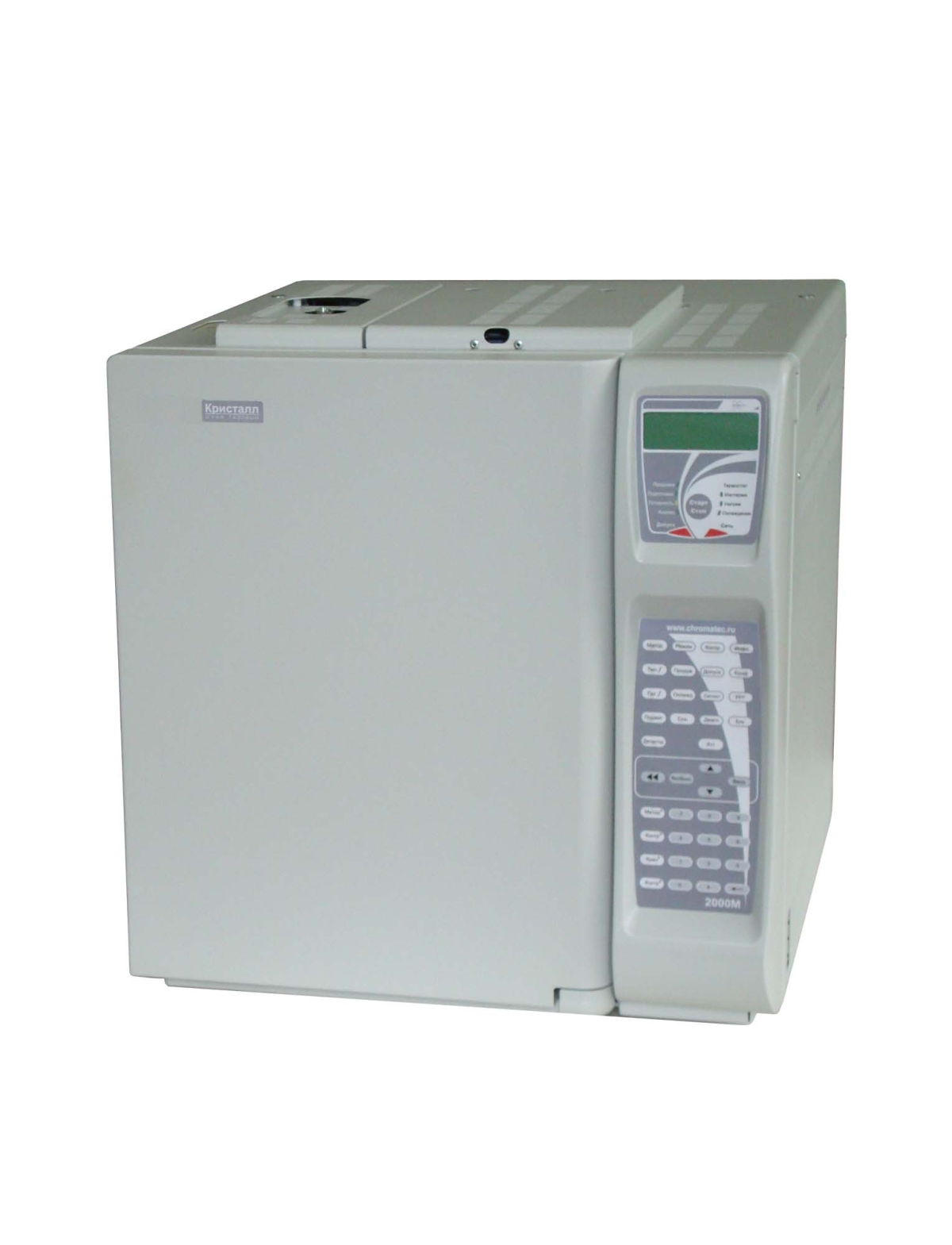

Gas chromatograph "Crystal 2000M"
Dimensions: width 520 mm height 490 mm depth 500 mm Weight: 32kg Power consumption: in heating mode 1000 W in isotherm 300 °C 370 W Technical solution of the chromatograph The improved design of the Kristall 2000M chromatograph has retained its necessary qualities: low cost, efficiency, simplicity and ease of use. At the same time, thanks to the ideology borrowed from the K5000 GC, a number of important user characteristics have been improved: column thermostat volume, access to components during maintenance, configuration flexibility. When creating the updated modification "Crystal 2000M", only proven and time-tested technical solutions were used. Speaker thermostat Dimensions (for installation of chromatography columns) width 250 mm, height 290 mm, depth 170 mm Operating temperature from ambient temperature +5 °C to 450 °C setting resolution 0.1 °C Programming speed from 1 to 50 °C/min, setting resolution 0.1 °C/min Number of isotherms setting resolution 0.1 °C/min Electronic flow and pressure regulators Inlet pressure from 0.36 to 0.60 MPa Number of electronic flow and pressure regulators 6 Carrier gas consumption from 5 to 500 ml/min Hydrogen consumption from 5 to 500 ml/min Air consumption from 5 to 800 ml/min Detectors and Vaporizers Detectors RTA, PID, TID, ESD, PFD, PID Number of detectors up to two Number of evaporators up to two Two thermostatic zones for evaporators and two thermostatic zones for detectors Detector signal sampling frequency from 10 to 250 Hz Cranes Modifications 4-, 6-, 10-port rotary Manual or automatic Thermostatic or unheated Automatic cranes controlled by electric drive total up to two Number of evaporators up to two For installation of taps, two thermostatic zones up to 150 °C (up to 250 °C - high-temperature version) Data transfer Analog with electronic attenuator (output signal 0..10 mV) Interface RS-232C, USB Manba: https://www.nv-lab.ru/catalog_info.php?ID=1485
