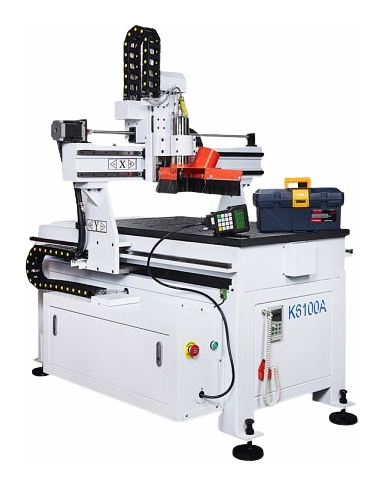

Advercut K6100A CNC Router
CNC milling machine Advercut K6100A - Productive milling machine with numerical control and a working field of 600×1000×150 mm.
Price on request
- Vacuum table: Yes
- Gross weight: 450 kg
- Net weight: 350 kg
- Working area height Z: 150 mm
- Product dimensions: 1750x1325x1800 mm
- Packaging dimensions: 1900x1500x2000 mm
- Connection interface: USB (Cable)
- Number of axles: 3 pcs.
- Delivery set: 12 cutters, 3 collets, workpiece height measurement sensor, coolant pump, T-slot clamps 6 pcs., wrenches 2 pcs. coolant container
- Model: K6100A
- Motors: Nema 34 (XYZ)
- Inverter power: 2200 W
- Spindle power: 3000W
- Desktop: No
- Processed materials: Plywood, Wood, MDF and chipboard, PET, Polystyrene, Double-layer plastics, Rowmark, Monolithic polycarbonate, Stone, Granite, Marble, Ceramics, ABS, Paronite, Gypsum, PVC, Plexiglas, Acrylic glass, Textolite, Foam plastic, Aluminum, Zinc, Brass, Fiberglass
- Cooling: Liquid
- Software: ArtCAM, MasterCAM, SolidCAM, SprutCAM, PowerMill/Type 3
- Desk size: 600x1000 mm
- X.Y work area size: 600x1000mm
- Resolution: 0.01 mm
- Control system (CNC): Richauto A11
- Processing speed: 8000 mm/m
- Travel speed (idling): 10,000 mm/min
- Compatible OS: Windows
- Rail Type: 20mm Square Rails (XY), 15mm Square Rails (Z)
- Chuck type (Collet): ER20
- Drive type: 16 mm ball screw (XYZ)
- Gearbox type: Belt (Z)
- Machine type: Milling
- Spindle type: Asynchronous three-phase 80 mm
- Positioning accuracy: 0.1mm (XY), 0.05mm (Z)
- Control code: G-code
- Power supply: 220V ± 10% 50HZ
