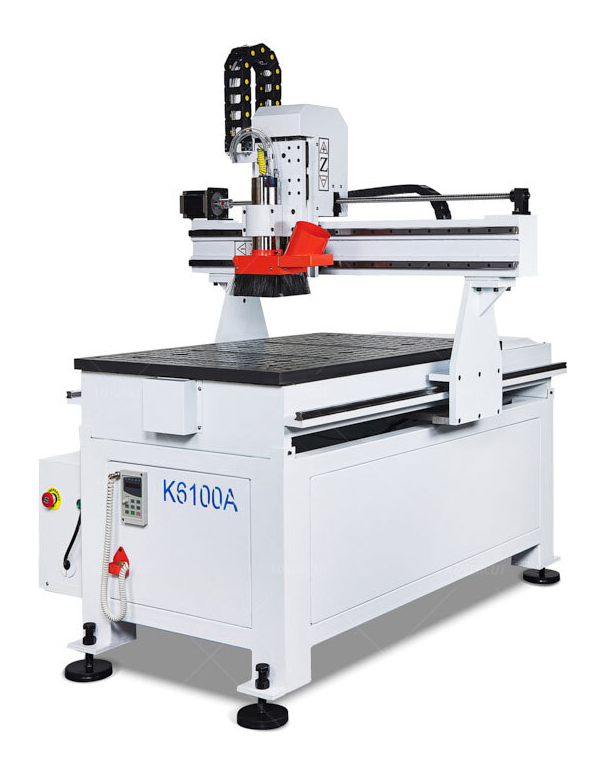

Advercut K6100 CNC router
CNC milling machine Advercut K6100 - Milling machine with a spindle power of 2.2 kW and a working area size of 600x1000x150 mm.
Price on request
- Vacuum table: Yes
- Gross weight: 400 kg
- Net weight: 350 kg
- Working area height Z: 150 mm
- Product dimensions: 1600x1200x1450 mm
- Packaging dimensions: 1700x1300x1550 mm
- Permissible environmental humidity: Less than 40%
- Connection interface: USB (Cable), Ethernet (LAN), Wi-Fi
- Number of tools in the magazine: 8
- Number of axles: 4 pcs.
- Delivery set: 5 cutters, workpiece height measurement sensor, clamps for T-slot 4 pcs., wrenches 2 pcs., collet 2 pcs., LPT/USB cable, interconnect cable, safety glasses, brush, chip removal brush, flash drive, instruction manual.
- Spindle power: 2.2 kW
- Processed materials: Plywood, Wood, MDF and chipboard, PET, Polystyrene, Double-layer plastics, Rowmark, Monolithic polycarbonate, Stone, Granite, Marble, Ceramics, ABS, Paronite, Gypsum, PVC, Plexiglas, Acrylic glass, Textolite, Foam plastic, Aluminum, Zinc, Brass, Fiberglass,
- Cooling: liquid
- Supported file formats: G-Code
- Software: ArtCAM / MasterCAM / SolidCAM / SprutCAM / PowerMill/Type 3
- Working environment temperature: 20-26℃
- Work area size X.Y: 600x1000 mm
- Resolution: 0.01 mm
- Control system (CNC): SYNTEC 20A
- Travel speed (idling): 10000 mm/min
- Tool change: Automatic
- Compatible OS: Windows
- Tool magazine type: Linear 8-round
- Chuck type (Collet): ER20
- Workbench type: Vacuum with T-slots
- Machine type: Milling
- Spindle type: Asynchronous three-phase
- Positioning accuracy: 0.05mm
- Spindle speed: 6000 rpm
- Power supply: 220V ± 10% 50HZ
