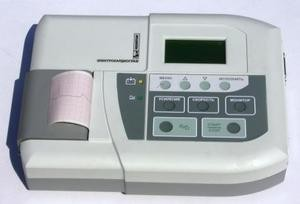

Electrocardiograph EK3T-0r "R-D"
Discontinued from sale - the closest analogue is the three-channel electrocardiograph EKZT-12-01 "GEOLINK" Electrocardiograph EK3T-01-“R-D” is intended for electrocardiographic examinations according to standard methods of the Ministry Healthcare of the Russian Federation. Scope of application: wherever an electrocardiograph is needed - from a doctor private practice to large hospitals, ambulances and air ambulances Features: EC provides the recording of 6 or 12 ECG leads of the patient in the system of generally accepted standard leads and three ECG leads according to Neb; the presence of a graphic LCD display allows you to view the ECG; automatic start of recording when an arrhythmia is detected allows you to significantly save paper; the ability to automatically analyze the ECG eliminates routine work on measuring the amplitude-time parameters of the ECG; the ability to use paper without a millimeter grid; the ability to take an ECG with any number of chest leads; the ability to quickly switch main operating modes; registration of the RR-gram allows you to observe changes in heart rhythm; ECG registration in test mode allows you to visually compare the ECG before and after testing; The nested menu system makes it easy to control the device. Operating modes: automatic mode - synchronous recording of 12 leads per for a user-specified time and displaying them for registration by one or three leads. The registration time can be set from 2 to 10 seconds; manual recording mode - one selected lead or a selected group of three leads is printed in real time; monitor mode—the ability to view the ECG on a graphic screen; arrhythmia mode—automatic ECG registration when arrhythmia or extrasystoles are detected in a patient; RR-gram mode—registration of an RR-gram for a specified time; sample mode—multiple ECG registrations at a specified interval for a specified time; copy printing mode - the ability to print a copy of the last ECG taken in automatic mode Basic parameters of the electrocardiogram recording mode: mode, sensitivity, speed, activation of anti-tremor and anti-drift filters, heart rate and ECG parameters are recorded next to the ECG. The device display displays optionally the parameters of the recording mode, menu or one ECG lead. Specifications Paper width - 58 mm (or 60 mm upon special order); Screen size - 55x30 mm; Sensitivity - 5,10,20 mm/mV with an error of ±5%; Paper speed – 10 mm/s, 25 mm/s and 50 mm/s; The voltage range of the recorded input signals is 0.03 mV-5 mV; Input impedance - at least 5 MOhm at a frequency of 10 Hz; Frequency bandwidth - 0.05 - 160 Hz Availability of anti-tremor, notch and anti-drift filters Internal noise voltage applied to the input - no more than 20 µV; Common mode signal attenuation coefficient - no less than 100,000 (100 dB); Constant time of the amplification path with the anti-drift filter turned on - 0.12 or 0.4 seconds, with the anti-drift filter turned off - 3.2 seconds; Electrode breakage monitoring. The electrocardiograph is powered from: AC mains with a frequency of 50 Hz and voltage from 198 to 242 V; vehicle on-board network voltage from 10 to 15 V; internal power source - 7.2 V battery; The power consumed by the EC does not exceed 10 W; Electrical safety - class II, type CF Ability to output information to a computer using an ECG archiving program (optional); Dimensions 245x182x60 mm; Weight no more than 1.2 kg. Scope of delivery: Electrocardiographic unit with built-in thermal printer and charger, electrode cable, network cable, set of ECG electrodes, roll of thermal paper, electrode gel, bag, instruction manual. Manba: https://www.nv-lab.ru/catalog_info.php?ID=803
