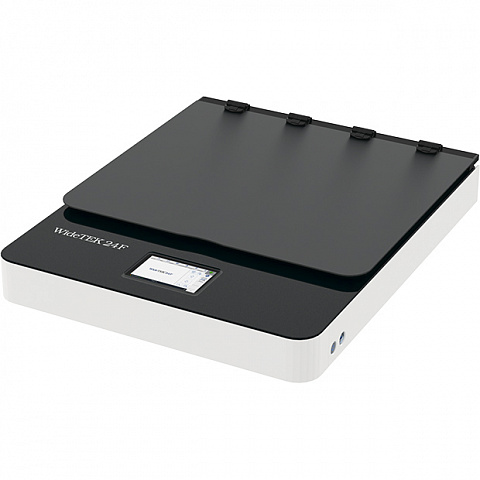

Document scanner WideTEK 24F-600 CIS
The WideTEK® 24F scanner is the newest addition to the Image Access line of large format flatbed scanners. Advanced optical technology and illumination make the WideTEK 24F extremely fast, accurate (up to 1200 dpi) and yet affordable. Today, the WideTEK 24F is the fastest flatbed CIS scanner on the market: scanning a 60 x 45 cm document at 600 dpi in color mode takes less than 4 seconds. When scanning originals at 1200 dpi resolution, they will reveal small details that cannot be seen with the naked eye. WideTEK 24F features a durable glass plate to protect against dust, dirt, ink, paint and other contaminants. The plate has no frames, which means it is suitable for scanning large originals. In addition, it is suitable for scanning heavy originals by simply lifting the lid and locking the locking mechanisms. Thanks to this, you can scan printed canvases and other originals up to 5 cm thick. In addition, if necessary, the cover can be removed. The scanning area on the glass plate is practically invisible because it has an anti-reflective coating. Its cleaning does not require effort, and special treatment will provide reliable protection against damage and guarantee a long service life. The WideTEK 24F scanner's color space is significantly wider than standard SRGB, and scans can be output in Adobe RGB or a proprietary RGB model. Finally, the unique cloud-based technology for creating ICC profiles completely eliminates the shortcomings of WideTEK 24F. The virtual scanning feature allows you to change images without rescanning them. Almost all parameters can be changed directly during scanning, and the results are immediately displayed on the built-in touch screen or a connected external monitor. The WideTEK 24F flatbed scanner is an industrial-grade device that requires virtually no maintenance. This scanner exceeds the quality criteria of FADGI***, Metamorfoze Light, and ISO 19264-1 (Level B).
- Maximum original size: 610 × 457 mm (24 × 18 inches), (11% larger than DIN/ISO A2)
- Automatic format recognition: yes, with the ability to trim and straighten distortions
- DIN format: DIN A5–DIN A2
- ANSI Format: Legal, US C
- Supports custom formats: yes
- Scan resolution: 1200 × 1200 dpi
- Optical resolution: 1200 × 600 dpi
- Pixel size: 9.3 × 9.3 µm
- Scanning speed for color originals: 60 × 45 cm at a resolution of 1200 dpi - < 8 s 60 × 45 cm at a resolution of 600 dpi - < 4 s 60 × 45 cm at a resolution of 300 dpi - < 4 s
- Color Depth: 48-bit color, 16-bit grayscale (internal)
- Scan results: 24-bit color, 8-bit grayscale, binary, extended grayscale
- File formats: multi-page PDF (PDF/A) and TIFF, JPEG, JPEG 2000, PNM, PNG, BMP, TIFF (Raw, G3, G4, LZW, JPEG), AutoCAD DWF, JBIG, DjVu, DICOM, PCX, Postscript, EPS, raw data, etc.
- ICC profiles: sRGB, Adobe RGB and native profile sets. Creation of individual profiles using Scan2ICC subscription
- Quality: meets FADGI ***, Metamorfoze Light and ISO 19264-1 requirements
- Computer: 64-bit Linux OS, 8th Gen Intel® Core™ i3 processor, 240GB SSD, 8GB RAM (rated for very long scans)
- Touch screen: diagonal - 7.5 inches, resolution - 1200 × 800
- USB Port: One USB 3.0 port
- Interface: Fast Ethernet 1 Gbps with Scan2Net® interface based on TCP/IP
- Camera: Linear CIS scanner with long self-focusing lens, depth of focus - > ±1 mm at 600 dpi resolution
- Light source: RGB LEDs with built-in diffuser meeting IEC 62471 standard, IR and UV free
- Lamp life: about 50,000 hours. Lamp replacement is included in the extended warranty
- Connection to power supplies: 100-240 V AC. VDC, 47-63 Hz (external power supply, meets CEC Level VI energy efficiency requirements)
- Power consumption: <0.5 W (sleep mode); 2.5 W (standby); 35 W (pre-scan mode); 70 W (scan mode)
- Operating temperature: 5 - 40°C
- Relative humidity: 20 - 80% (non-condensing)
- Noise level: <42 dBA (scan mode); <25 dBA (standby)
- Scanner dimensions (H × W × D): 140 × 730 × 900 mm
- Scanner weight: 28 kg
