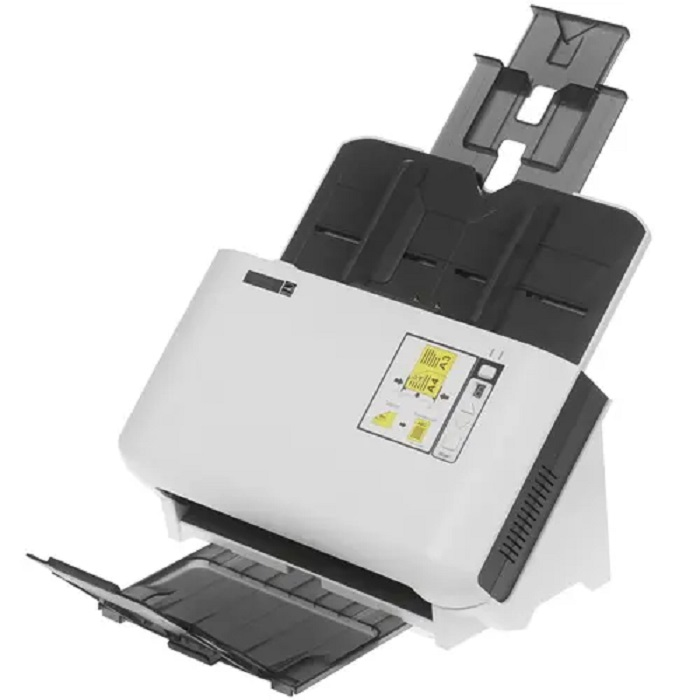

Document scanner Plustek SmartOffice SN8016U
Plustek SmartOffice SN8016U is an A3 departmental document scanner that connects to your PC either via a built-in USB interface or a built-in network interface. The dual interface coupled with industry standard TWAIN drivers and DocAction one-touch scanning allows this scanner to be used in virtually any document imaging application or scanning environment. With a scan speed of 80 ppm, 160 ipm duplex, a 100-sheet feeder and a daily duty cycle of 8,000 pages per day, the SmartOffice SC8016U is designed for applications that require frequent scanning of large batches of documents. When using a network interface, the scanner can be shared with all computers on the network. This is great for workgroups and departments that don't have a scanning workload to justify purchasing a scanner for every member of the workgroup or department. The innovative auto-wake feature turns on the scanner as soon as documents are placed in the feeder. An ultrasonic sensor detects double feeding of original documents during scanning. You can turn off the ultrasound feature when scanning documents containing labels, stickers, or receipts. This innovative design prevents double feeding and efficiently scans documents of varying weights and thicknesses. prevents double feeding, ensuring optimal reliability even when scanning large volumes of documents.
- Image Sensor: CIS x 2
- Light source: LED
- Optical resolution: 600 dpi
- Hardware resolution: 600 x 600 dpi
- Scan modes: Color: 48-bit input, 24-bit output Grayscale: 16-bit input, 8-bit output Black and white: 1-bit
- ADF Capacity: 1. 100 sheets (A4/Letter, 70gsm or 18lb), max. less than 10 mm (0.4 in) thick 2. 50 sheets (A3, 70 gsm or 18 lb) 3. 20 sheets (business cards) 4. Plastic card (portrait loading), max. Less than 1.2mm thick, embossed cards can be scanned. Note. The maximum capacity of the ADF depends on the paper weight.
- Scan speed (ADF): 80 ppm/160 ipm (grayscale/black and white, 300 dpi, A4 landscape) 55 ppm/110 ipm (color, 200 dpi, A4 landscape) 36 ppm/72 ipm (color, 300 dpi, A4 landscape) Note: Results may vary depending on your application for scanning, computer processor and system memory.
- Scan Area (W x D): Max: 297 x 5080 mm (11.69 x 200 inches) Min: 13.2 x 13.2 mm (0.52 x 0.52 inches)
- Acceptable paper dimensions (W x D): Max: 305 x 5080 mm (12” x 200”) Min: 50.8 x 63.5 mm (2” x 2.5”)
- Acceptable paper weight (thickness): 40 to 220 g/m² (10 to 58 lb)
- Multi-feed detection: With ultrasonic technology
- Daily scan (sheets): 8000
- Roller life (scans): 300,000
- Gasket life (scans): 100,000
- Action Button: 4 Buttons: Up, Down, Scan, Standby 9 Function Keys: All Customizable.
- Power supply: DC 24V/2.7A
- Interface: USB 2.0 / RJ45 LAN
- Protocol: TWAIN compatible
- Operating systems: Compatible with Windows XP/Vista/7/8/10/11 Linux is available for system integrators only. Please contact us at sales@plustek.com for more information.
- Hardware Requirements: 3.2 GHz CPU or higher[1] [1]Windows Recommended: 3.2 GHz Intel® Core™ i7 processor with 4 CPU cores or higher Minimum 4 GB RAM (recommended: 8 GB or more) 6 GB hard drive space for installation program Display dimensions 1024x768 or larger
- Software included: Plustek DocAction Plustek DocTWAIN
- Built-in OCR: Plustek OCR (based on ABBYY® FineReader®)
- Dimensions (W x D x H): 436 x 262 x 266 mm
- Net weight: 6.57 kg
