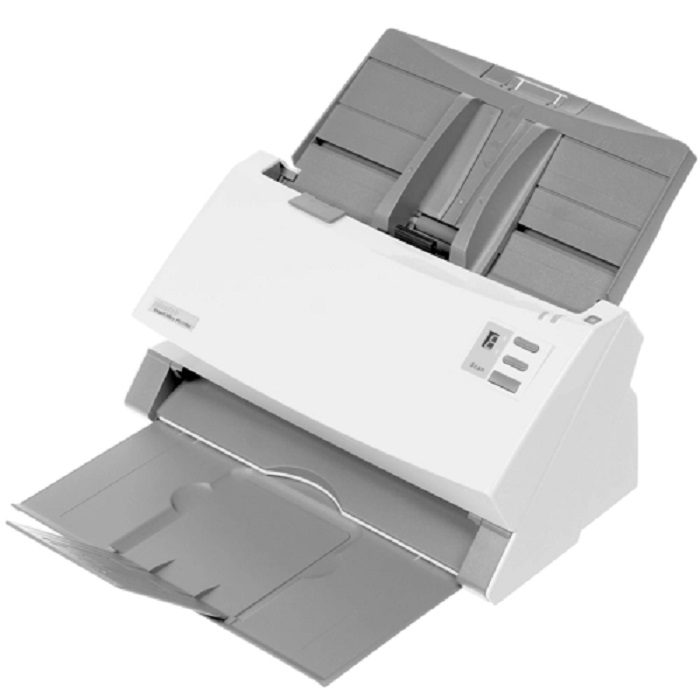

Document scanner Plustek SmartOffice PS3150U
The Plustek SmartOffice PS3180U scanner is a pull-through type equipment with a white classic body, a CIS sensor, an LED and a USB interface. There is also a two-sided autofeed system with a 100-sheet tray. The equipment operates in b/w (80 ppm) and color (90 ppm) modes with a resolution of 600x600 dpi. Plustek SmartOffice PS3180U is used to work with A4 sheets with a maximum scanning area of 21.6x508 cm. The package includes a USB cable and a power adapter. The device weighs 2.7 kg and has dimensions of 23.07x31.87x22.83 cm.
Price on request
- Image Sensor: CIS x 2 (Duplex)
- Light source: LED
- Optical resolution: 600 dpi
- Hardware resolution: 600 x 600 dpi
- Scan modes: Color: 48-bit input, 24-bit output Grayscale: 16-bit input, 8-bit output B/W: 1-bit
- ADF capacity: 1. 100 sheets (A4/Letter, 70 gsm or 18 lb) 2. 30 sheets (business cards) 3. Plastic card, max. thickness less than 1.2 mm. Note. The maximum capacity of the ADF depends on the paper weight.
- Scan speed (ADF): 50 ppm/100 ipm (Greyscale/B&W, 200 dpi, A4, portrait) 50 ppm/100 ipm (Gray/B&W, 300 dpi, A4, Portrait) 45 ppm/90 ipm (Color, 200 dpi, A4, Portrait) 30 ppm/ 60 ipm (Color, 300 dpi, A4 Portrait) Note: Results may vary depending on the scanning application used, computer processor, and system memory.
- Scan Area (W x D): Max: 216 x 5080 mm (8.5” x 200”) Min: 13.2 x 13.2 mm (0.52” x 0.52”)
- Acceptable paper dimensions (W x D): Max: 216 x 5080 mm (8.5” x 200”) Min: 50.8 x 50.8 mm (2” x 2”)
- Acceptable paper weight (thickness): 40 to 220 g/m² (10 to 58 lb)
- Multi-feed detection: With ultrasonic technology
- Daily scan (sheets): 6000
- Roller life (scans): 300,000
- Gasket life (scans): 100,000
- Action Button: 4 Buttons: Up, Down, Scan, Standby. 9 function keys can be customized.
- Power supply: DC 24V/1.25A
- Interface: USB 2.0 x 1, USB 2.0 (host) x 1
- Protocol: TWAIN compatible
- Operating systems: Windows XP / Vista / 7 / 8 / 10 / 11 macOS 10.12.x/ 10.13.x/ 10.14.x/ 10.15.x/ 11.x/ 12.x Linux compatibility is available for system integrators only. Please contact us at sales@plustek.com for more information.
- Hardware Requirements: Windows and Mac 2.0 GHz or higher CPU processor[1][2][3] [1]Windows Recommended: 2.8 GHz Intel® Core™ i5 processor with 4 CPU cores or higher [2]Mac INTEL and M1 processor support [3]PowerPC compatible not available Minimum 4 GB RAM (recommended: 8 GB or more) 6 GB of hard disk space for installing the program Screen size 1024x768 or higher
- Software included: Plustek DocAction Plustek DocTWAIN Plustek MacAction Plustek ICA *Installation DVD contains Windows software and driver only. For Mac, download from our website.
- Built-in OCR: Plustek OCR (for Windows) (based on ABBYY® FineReader®) Plustek DocOCR (for Mac) *The installation DVD contains Windows software and driver only. For Mac, download from our website.
- Dimensions (W x D x H): 318.7 x 230.7 x 228.3 mm
- Net weight: 2.7kg
