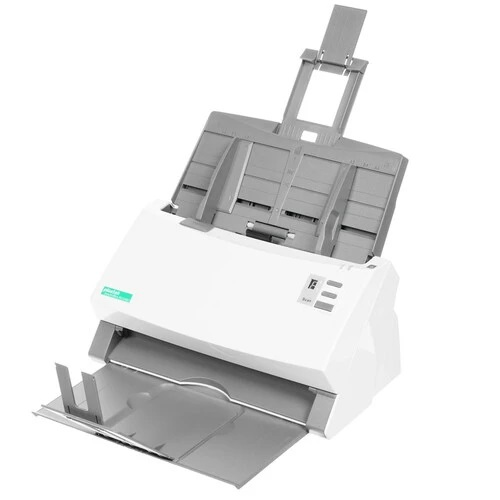

Document scanner Plustek SmartOffice PS3140U

Plustek SmartOffice PS3140U can scan batches of documents from the same applicant without sorting them, helping you work more efficiently and effectively. Multifeed detection provides the most reliable user experience, and this technology can eliminate the need for rescanning. Automatically optimizes images by correcting dark colors, enhancing bright backgrounds, and color distribution. You don't need to spend time setting up image processing functions or training. Thanks to an optimized friction roller system made from advanced composite material, the paper feeding process is smoother and more reliable. This not only minimizes paper feeding errors, but also helps complete the document digitization process efficiently.

• Image Sensor: CIS x 2
• Light source: LED
• Optical resolution: 600dpi
• Hardware resolution: 600 x 600 dpi
• Scan modes: Color: 48-bit input; output 24-bit Grayscale: input 16-bit; Output 8-bit B&W: 1-bit
• Automatic Feeder (ADF) Capacity: 1. 100 sheets (A4, 70g/㎡) 2. 30 sheets (business card) 3. Plastic card, Maximum thickness up to 1.2 mm. Note: ADF capacity varies depending on paper weight
• Working speed (ADF): 40 ppm/80 ppm (Grayscale/B/W, 200 dpi, A4) 40 pp. min./ 80 i.m. (Grayscale/B&W, 300 dpi, A4) 40 ppm/ 80 ipm. (Color, 200 dpi, A4) 30 pages min/ 60 pages min. (Color, 300 dpi, A4) Note: Scan results may vary depending on software applications and computer power
• Scan Area (Width x Length): Max: 216 x 5080 mm (8.5” x 200”) Min: 13.2 x 13.2 mm (0.52” x 0.52”)
• Acceptable Paper Size (Width x Length): Max: 216 x 5080 mm (8.5” x 200”) Min: 50.8 x 50.8 mm (2” x 2”)
• Allowable weight (thickness) of paper: 40 by 220 g/m2
• Multi-feed detection: With ultrasonic sensor
• Daily load (sheets): 4000
• Roller life (number of scans): 300,000
• Pressure pad resource (number of scans): 100000
• Control buttons: 4 buttons: Up, Down, Scan, Standby 9 function keys. All customizable
• Power consumption: 24 Vdc/ 1.25 A
• Interface: USB 2.0 x 1
• Protocols: TWAIN compatible
• OS support: Windows XP / Vista / 7 / 8 / 10 Mac 10.10.x/ 10.11.x/ 10.12.x/ 10.13.x/ 10.14.x/ 10.15.x
• Hardware requirements: Pentium IV 2.4 GHz processor DVD-ROM driver USB 2.0 support 1GB RAM (2GB computer RAM recommended) 2GB hard drive (3GB computer RAM recommended)
• Dimensions (Width x Depth x Height): 318.7 x 230.7 x 228.3 mm (12.55" x 9.08" x 8.99")
• Weight: 2.7kg
