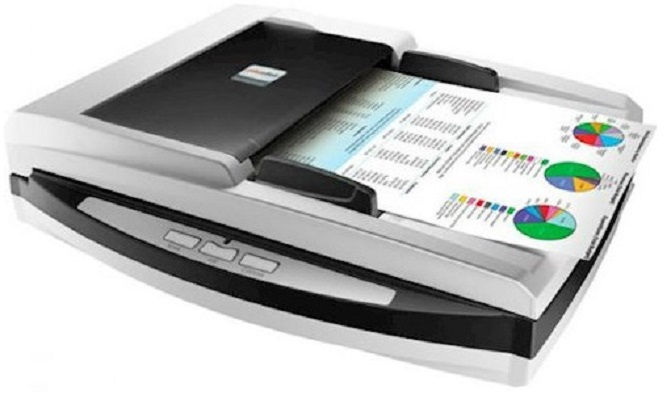

Document scanner Plustek SmartOffice PL4080
Plustek SmartOffice PL4080 is a reliable duplex document scanner that combines an A4 flatbed and a 50-sheet automatic document feeder. This easy-to-use scanner offers the versatility you need to electronically archive important documents, applications and forms. Quickly scan stacks of documents with the 50-sheet automatic document feeder. Reliability and productivity with high-speed duplex scanning up to 40ppm/80ipm. Long Sheet Scanning: Allows scanning of long paper up to 50 inches (1270 mm) in length. Compared to a traditional document feeder scanner, the PL4080 is equipped with a document feeder that provides superior processing of multi-fold documents such as questionnaires and registration forms. Standard TWAIN and WIA drivers combined with TIF, JPG, PDF and Microsoft Office file formats provide compatibility with most scanning and imaging software. Compatible with most scanning-capable software applications and integrates with your existing platform through industry standard TWAIN and WIA conversion, performing optical character recognition on scanned images and converting them directly into searchable or editable formats, including Microsoft® Word, Excel® or searchable PDFs.
- Image Sensor: CIS x 2
- Light source: LED
- Optical resolution: 600 dpi
- Hardware resolution: Tablet: 1200 x 1200 dpi ADF: 600 x 600 dpi
- Scan modes: Color: 48-bit input; output 24-bit Grayscale: input 16-bit; Output 8-bit B&W: 1-bit
- Automatic Feeder (ADF) Capacity: 1. 50 sheets (A4, 70g/㎡), Maximum thickness up to 5mm (or 0.2"). 2. 20 sheets (business card) Note: ADF capacity varies depending on paper weight.
- Working speed (ADF): 40 ppm/80 ppm (Color, Grayscale, B/W, 200 dpi, A4) 26 pp. min./ 52 ppm. (Color, Grayscale, B/W, 300 dpi, A4) Note: Scan results may vary depending on software applications and computer power.
- Scan Area (Width x Length): Flatbed: Max. 216 x 297 mm Min. 12.7 x 12.7 mm Automatic feeder: Max. 216 x 1270 mm Min. 12.7 x 12.7 mm
- Acceptable Paper Size (Width x Length): Flatbed: Max. 216 x 297 mm Min. 12.7 x 12.7 mm Automatic feeder: Max. 220 x 1270 mm Min. 90 x 50.8 mm
- Allowable weight (thickness) of paper: 50 by 120 g/m2
- Daily load (sheets): 3,000
- Roller life (number of scans): 100,000
- Pressure pad resource (number of scans): 50000
- Control buttons: Scan、PDF、Custom
- Power consumption: 24 Vdc/ 0.75 A
- Interface: USB 2.0
- Protocols: TWAIN compatible
- OS support: Windows XP / Vista / 7 / 8 / 10 / 11 LINUX for system integrators. Contact your local representative: sales@plustek.com
- Hardware Requirements: 2.0 GHz CPU processor or higher [1] [1] For Windows, recommended: 2.8 GHz Intel® Core™ i5 processor with 4 CPU cores or higher. Minimum 4 GB RAM (recommended: 8 GB or more) 6 GB hard disk space for program installation Display size 1024x768 or larger.
- Software included: Plustek DocAction Plustek DocTWAIN
- built-in OCR: Plustek OCR (Based on ABBYY® FineReader®)
- Dimensions (Width x Depth x Height): 418 x 326 x 101 mm (16.45” x 12.83” x 4”)
- Weight: 3.98 kg
