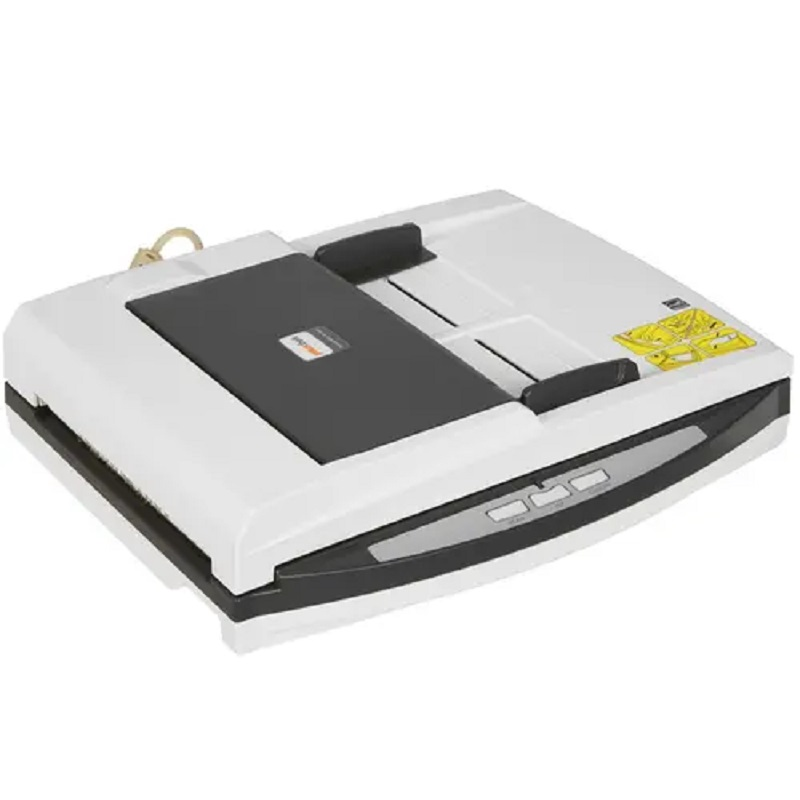

Document scanner Plustek SmartOffice PL3060
The Plustek SmartOffice PL3060 scanner allows you to enter electronic text and images into your computer in a professional way. This is a flatbed scanner with a CIS contact sensor that contains a line of photocells. It moves under the glass as it scans, conveying information about the image line by line. The device uses LEDs as a light source, located on a moving platform next to the photo ruler. Plustek SmartOffice PL3060 works with A4 format, with a resolution of 600 dpi. The peculiarity of the model is the “ADF” function, which consists of automatically feeding a stack of documents. This ensures continuous scanning. There is a guide for changing paper sizes. A convenient option is to convert a document to PDF when you click the “PDF” button. The scanner is connected to a computer device when connected via a USB port.
- Image Sensor: CIS x 2 (2-sided)
- Light source: LED
- Optical resolution: 600 dpi
- Hardware resolution: Tablet: 1200 x 1200 dpi ADF: 600 x 600 dpi
- Scan modes: Color: 48-bit input; output 24-bit Grayscale: input 16-bit; Output 8-bit B&W: 1-bit
- Automatic Feeder (ADF) Capacity: 1. 50 sheets (A4, 70g/㎡), Maximum thickness up to 5mm (or 0.2"). 2. 20 sheets (business card) Note: ADF capacity varies depending on the paper weight.
- Working speed (ADF): 32 ppm/64 ppm (Color, 200 dpi, A4) 32 pages min./ 64 pages min. (Grayscale, 200 dpi, A4) 32 pages min./ 64 pages min. (B/W, 200 dpi, A4) Note: Scan results may vary depending on software applications and computer power.
- Scan Area (Width x Length): Flatbed: Max. 216 x 297 mm Min. 12.7 x 12.7 mm Automatic feeder: Max. 216 x 356 mm Min. 12.7 x 12.7 mm
- Acceptable Paper Size (Width x Length): Flatbed: Max. 216 x 297 mm Min. 12.7 x 12.7 mm Automatic feeder: Max. 220 x 356 mm Min. 90 x 50.8 mm
- Allowable weight (thickness) of paper: 50 by 120 g/m2
- Daily load (sheets): 3,000
- Roller life (number of scans): 100,000
- Pressure pad life (number of scans): 25,000
- Control buttons: Scan、PDF、Custom
- Power consumption: 24 Vdc/ 0.75 A
- Interface: USB 2.0
- Protocols: TWAIN compatible
- OS support: Windows XP / Vista / 7 / 8 / 10 / 11
- Hardware Requirements: 2.0 GHz CPU processor or higher [1] [1] For Windows, recommended: 2.8 GHz Intel® Core™ i5 processor with 4 CPU cores or higher. Minimum 4 GB RAM (recommended: 8 GB or more) 6 GB hard disk space for program installation Display size 1024x768 or larger.
- Software included: Plustek DocAction Plustek DocTWAIN
- Built-in OCR: Plustek OCR (Powered by ABBYY® FineReader®)
- Dimensions (Width x Depth x Height): 418 x 326 x 101 mm (16.45” x 12.83” x 4”)
- Weight: 3.98 Kgs (8.77 Lbs)
