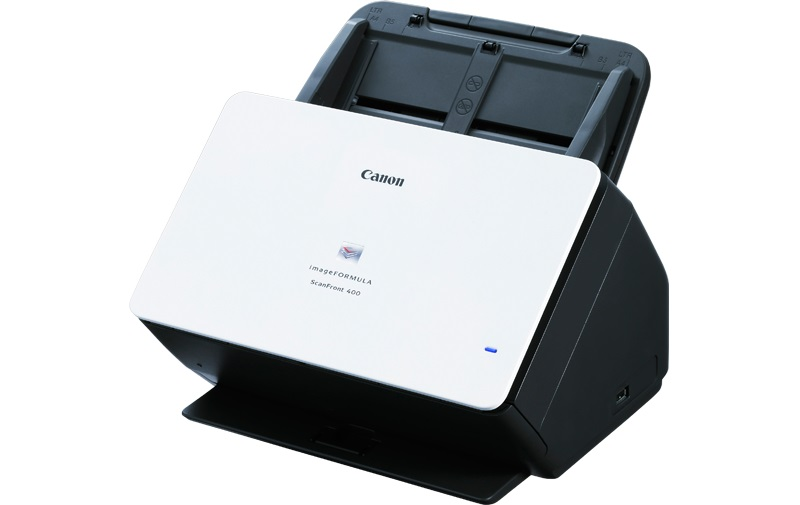

Document scanner Canon imageFORMULA ScanFront 400
The ScanFront 400 is a powerful desktop network scanner that lets you quickly, easily, and reliably scan a variety of document sizes and types to your desired destination with just a few button presses—no PC or software required. The Canon imageFORMULA ScanFront 400 is the ultimate network scanner for simplifying your workflow. A simple interface makes it quick and easy to scan to email, network folders, FTP, USB, fax or printers directly from the bright, responsive 10.1” (25.7cm) TFT touchscreen (no additional hardware or software required). Its sleek, compact design and quiet operation make it ideal for use in both back-of-house and customer counter applications in retail, banking, legal and healthcare environments. In small businesses, you can arrange shared access to the device for all office employees, and in large corporations, you can integrate the scanner into the existing infrastructure for both scanning in the central office and decentralized scanning in branches.
- Color Source: 3-color (RGB) LED
- Scanning side: Single sided/double sided
- Interface: LAN: 10Base-T/100Base-TX/1000Base-T (RJ-45 connector), 3x USB 2.0 (for USB flash drive, keyboard, mouse, etc.)
- Control panel: 10.1" (TFT LCD touch screen (WSGVA 1024 x 600))
- Paper separation: Separation roller
- Productivity per day: Approx. 6000 scans per day
- B&W speed: 45 ppm / 90 ipm
- Color speed: 45 ppm / 90 ipm
- Scan resolution: 100 x 100 dpi. / 150 x 150 dpi / 200 x 200 dpi /300 x 300 dpi, 400 x 400 dpi. / 600 x 600 dpi
- Scan Modes: Black & White, Error Diffusion, Text Enhancement, Grayscale (256 Levels), 24-bit Color Scale, Auto Color Detection
- Scan Features: Ultrasonic Double Feed Detection, Double Feed Retry/Reset, Straighten, Folded Sheet Mode, Long Document Scanning, Skip Blank Pages, Auto Document Orientation, Background Softening, Bleed-through Reduction, Shadow Removal, Unwanted Color Removal/Color Enhancement
- Output file: TIFF, JPEG, PNG, PDF, PDF/A
- Paper: Width 50 - 216 mm, Length 54 - 356 mm (3048 mm in long document mode), Thickness (Separation ON) 27 - 209 g/m² (0.04 - 0.25 mm), Thickness (Separation OFF) 27 - 255 g/m² (0.04 - 0.30 mm)
- Business card: Size 50 x 85 mm, Thickness up to 380 g/m² (0.35 mm)
- Card: Size 54 x 86 mm (ISO standard), Thickness 1.4 mm, Horizontal feed only, max. 10 cards or 1 corrugated
- Passport: Thickness up to 6 mm (including protective sleeve for scanning)
- Feeder capacity: 60 sheets (80 gsm)
- Scan destinations: Scan to Shared Folder, Scan to Email, Scan to FTP, Scan to Fax (via Internet Fax Service), Scan to Printer (FTP Print), Scan to USB Memory
- Protocols: TCP/IP (IPv4), DNS, DHCP, SMB, NTP, HTTP, FTP, SFTP, secure send (FTPS and SMTPS), WebDAV, LDAPS
- IP address: Automatically assigned (DHCP support) or fixed
- Directory support: Active Directory (NTLM authentication), OpenLDAP (simple authentication)
- Software Tools: ScanFront Administration Tool, Web Application Development Kit (SDK)
- Power Requirements: 100 – 240 VAC (50/60 Hz)
- Power consumption: Scanning less than 40 W, Sleep mode less than 2.0 W, Power off less than 0.5 W
- Operating conditions: Temperature 10–32.5 °C, relative humidity 20–80%
- Environmental Compliance: RoHS and ENERGY STAR
- Dimensions (W x H x D): With closed trays 305 × 282 × 230 mm, With open trays 305 × 629 × 366 mm
- Weight: 4.5 kg
