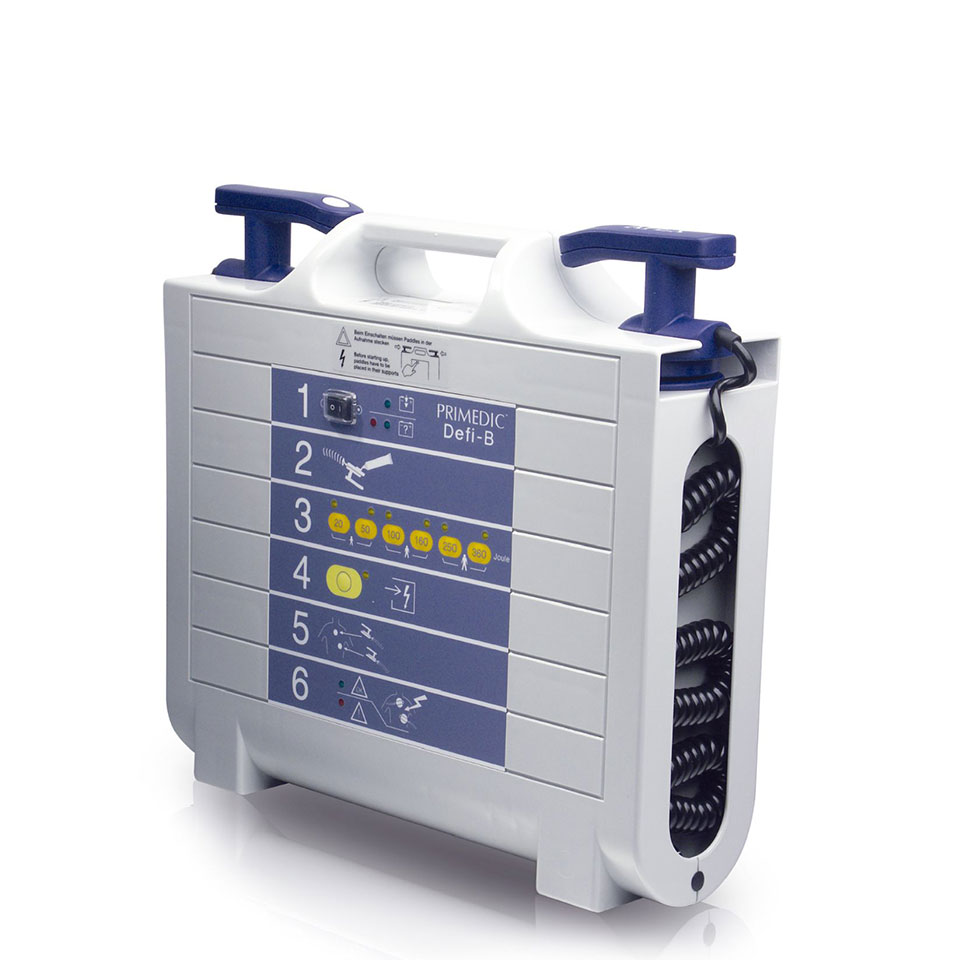

Defibrillator Primedic Defi-B
Primedic Defi-B defibrillator. The PRIMEDIC Defi-B defibrillator is intended for external defibrillation in patients with sudden cardiac arrest. The device does not have a built-in ECG monitor. Defibrillation type - asynchronous external in manual mode. The device is a mobile and reliable medical device. The model is very convenient for use in ambulances, intensive care units, cardiac teams, sports medicine and in hospitals. The defibrillator is a self-contained portable device that does not depend on the electrical network. The device provides generation of a defibrillation pulse with a monophasic, sinusoidal, damped shape. Defibrillation is performed manually. The energy for a 360J discharge is accumulated within seven seconds. The collected energy is automatically safely discharged inside the device if a discharge is not performed within fifteen seconds. The discharge occurs only when the buttons on the reusable “iron” electrodes are simultaneously pressed. The rechargeable battery provides up to 35 discharges of 360 J (plus an additional 10 reserve) when the battery is fully charged. External reusable “iron” electrodes are designed for both adults and children. Powered by 220 V AC mains (built-in power supply) or by rechargeable battery (built-in charger). Features: Monophasic damped sinusoidal pulse. Operating mode: manual asynchronous. The energy accumulation time for a discharge with a power of 360 J is no more than 7 (9) seconds. Function of automatic reset of accumulated energy if the discharge has not been performed within 15 seconds. 35 discharges of 360 J (+10 reserve) with a fully charged battery. A pair of reusable external defibrillation electrodes (“irons”), adult and built-in for children. User interface with simple, intuitive symbols and step-by-step instructions. Automatic internal self-testing and monitoring of device health after switching on. Cables for external discharge electrodes are securely located in the housing. High reliability and ease of operation. Manufacturer's warranty 2 years (battery warranty - 6 months). Manba: https://www.nv-lab.ru/catalog_info.php?ID=5269
- Operating mode: asynchronous external
- manual defibrillation
- Energy levels, J: 20,
- 50,
- 100,
- 160,
- 250,
- 360
- Charging time, sec: 7
- Electrodes: reusable electrodes,
- adults/children
- Classification: protection class II
- type BF
- medical grade publication
- 2b
- Power supply, V: from battery 14.4
- Voltage, W: 220
- Battery charging time
- hour: 5.5
- Battery capacity,
- charge: 35+10 reserve
- Overall dimensions, mm: 400×480×120
- Weight, kg: 9
