Interactive equipment

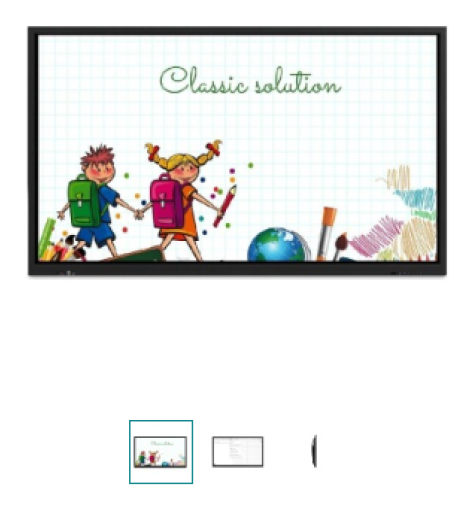

Interactive panel Classic Solution IFP-861A4K
The interactive panel Classic Solution IFP-861A4K was developed in accordance with methodological recommendations for the creation and operation of digital education centers and children's technology parks. Anti-reflective tempered glass does not reflect objects around it and has excellent resistance to mechanical stress. The included Classic Solution software allows you to use the multi-touch function to resize, move and rotate objects, make inscriptions and import pictures, edit pdf, ppt documents and much more.
Price on request
- Diagonal 86"
- Matrix backlight type Direct LED
- 16:9 format
- Resolution 3840x2160
- Maximum brightness 450 nits
- Contrast ratio 4000:1 (DCR ON 5000:1)
- Matrix response time 5 ms
- Matrix service life (before brightness decreases by 50%) 50,000 hours
- Light sensor Yes
- Viewing angle 178° / 178°
- Orientation (portrait/landscape) Landscape
- Touch screen
- Touch technology Infrared
- Operating modes: Multitouch, Multiuser
- Input methods Finger, any non-transparent object, any non-sharp object, stylus
- Multi-Touch support in Windows 7, Windows 8, Windows 10
- Sensor resolution 32768 x 32768
- Number of touch points 20
- Positioning accuracy ≤ 1 mm
- Protective glass thickness 4 mm
- Strength of protective glass on the Mohs scale 7H
- Type of protective glass Vandal-proof, anti-reflective, frosted
- Sound and Audio
- Audio output mode Stereo
- Built-in speakers 15W x 2
- Characteristics of a non-removable computer
- Processor ARM A73 (1.8 GHz)
- RAM 8 GB DDR4
- Internal memory 64 GB (128 GB optional)
- WI-FI 2.4GHz/5GHz (802.11a/b/g/n/ac)
- Bluetooth 2.1+EDR/4.2/5.0
- Interfaces
- HDMI IN 2.0 3 pcs
- HDMI OUT 2.0 1 piece
- Display port 1.2 1 piece
- VGA (D-sub15pin) 1 piece
- Audio input 1 piece
- Audio output 1 piece
- RJ45 Port (LAN 10M/100M/1000Mbps Base-T) 2 pcs
- RS-232 (COM) 1 pc.
- USB 2.0 Type A 1 pc
- USB 3.0 Type A 4 pcs
- USB 3.0 Type B 2 pcs
- USB Type C 1 piece
- MIC 1 piece
- Coaxial (SPdif) 1 piece
- Features
- VESA standard 700 x 400 (M8)
- Color Black
- Housing material Metal
- Energy consumption
- Mains operation 100V-240V 50/60Hz
- Standby power consumption ≤0.5W
- Power consumption (Standard mode) 450 W
- Dimensions and weight
- Physical dimensions (WxHxD) 1967 x 1161 x 89 mm
- Package dimensions (WxHxD) 12140 x 1340 x 280 mm
- Weight (net/gross) 72 kg / 90 kg
