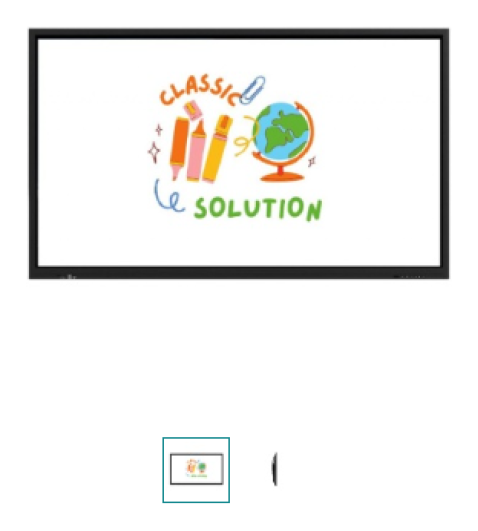

Interactive panel Classic Solution IFP-755P4K + ops

The interactive panel Classic Solution IFP-755P4K + ops was developed in accordance with methodological recommendations for the creation and operation of digital education centers and children's technology parks. Anti-reflective tempered glass does not reflect objects around it and has excellent resistance to mechanical stress. The included Classic Solution software allows you to use the multi-touch function to resize, move and rotate objects, make inscriptions and import pictures, edit pdf, ppt documents and much more.

• Diagonal 75"
• Matrix backlight type Direct LED
• 16:9 format
• Resolution 3840x2160
• Maximum brightness 450 nits
• Contrast ratio 4000:1 (DCR ON 5000:1)
• Matrix response time 5 ms
• Matrix service life (before brightness decreases by 50%) 50,000 hours
• Light sensor Yes
• Viewing angle 178° / 178°
• Orientation (portrait/landscape) Landscape
• Touch screen
• Touch technology Infrared
• Operating modes: Multitouch, Multiuser
• Input methods Finger, any non-transparent object, any non-sharp object, stylus
• Multi-Touch support in Windows 7, Windows 8, Windows 10
• Sensor resolution 32768 x 32768
• Number of touch points 20
• Positioning accuracy ≤ 1 mm
• Protective glass thickness 4 mm
• Strength of protective glass on the Mohs scale 7H
• Type of protective glass Vandal-proof, anti-reflective, frosted
• Sound and Audio
• Audio output mode Stereo
• Built-in speakers 16W x 2
• Characteristics of a non-removable computer
• Processor ARM A73 (1.8 GHz)
• RAM 4 GB DDR4 (6/8 GB DDR4 optional)
• Internal memory 32 GB (64/128 GB optional)
• WI-FI 2.4GHz/5GHz (802.11a/b/g/n/ac)
• Bluetooth 2.1+EDR/4.2/5.0
• OS ANDROID 9.0
• OPS Embedded Computer Specifications
• Intel i5-10210U processor
• Number of cores/threads 4/8
• Processor clock frequency 1.60-4.20 GHz
• 6 MB Intel® Smart Cache
• RAM 8 GB DDR4 2666 MHz
• 256 GB SSD storage
• LAN network (RJ45 10/100/1000 M), Wi-fi, Bluetooth
• WINDOWS 10 PRO OS (not activated, key not included)
• Interfaces
• HDMI IN 2.0 3 pcs
• HDMI OUT 2.0 1 piece
• Display port 1.2 1 piece
• VGA (D-sub15pin) 1 piece
• Audio input 1 piece
• Audio output 1 piece
• RJ45 Port (LAN 10M/100M/1000Mbps Base-T) 2 pcs
• RS-232 (COM) 1 pc.
• USB 2.0 Type A 2 pcs
• USB 3.0 Type A 5 pcs
• USB 3.0 Type B 2 pcs
• USB 3.1 Type A 2 pcs
• USB 3.1 Type C 2 pcs
• MIC 2 pcs
• Coaxial (SPdif) 1 piece
• Features
• VESA standard 800 x 400 (M8)
• Color Black
• Housing material Metal
• Energy consumption
• Mains operation 100V-240V 50/60Hz
• Standby power consumption ≤0.5W
• Dimensions and weight
• Physical dimensions (WxHxD) 1725 x 1035 x 87 mm
• Package dimensions (WxHxD) 1875 x 1155 x 275 mm
• Weight (net/gross) 54.1 kg / 71.5 kg
