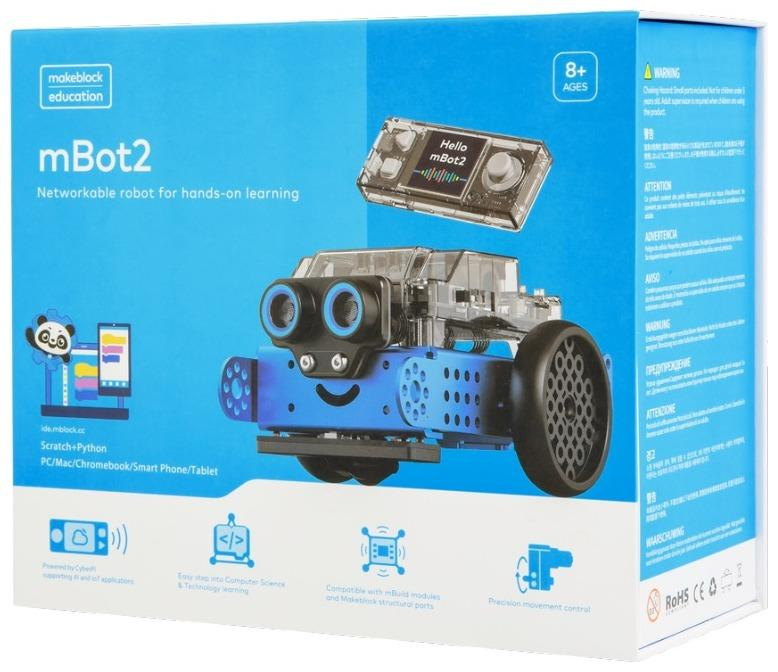

Makeblock mBot2 basic robotics kit
Basic and advanced training in robotics, robot networking, the basics of the Internet of Things (IoT) and artificial intelligence (AI). A new version of the mBot robot, with a time-tested design solution. Faster and more accurate movement, built-in WiFi and Bluetooth communication modules, built-in battery. A detachable controller for learning visual programming and Python programming. The mBot2 set is designed for middle school students and can be recommended for ages 10 and older. The CyberPi controller combines a full-color LCD display, speaker, microphone, light sensor, gyroscope, RGB LED strip and much more into one device. The built-in Wi-Fi + Bluetooth module allows you to connect to the Internet, allowing you to use AI and IoT functions (n/a speech recognition, wireless synchronization with a makeblock account, networking of multiple controllers, uploading data to Google spreadsheets via the Internet, etc.). The mBot2 Shield expansion board already has a built-in rechargeable Li-ion battery (2500 mAh), two encoder motor ports, two DC motor ports and four servo ports. You can connect LED strips and analog/digital Arduino sensors to some of the servo ports. All this allows you to use the kit not only for building a mobile configuration of robots, but also for IoT and AI projects. The ultrasonic distance sensor in a closed housing contains 8 LEDs, the illumination of which makes the robot more attractive and emotional. The RGB line sensor unit allows the robot to detect lines and colors. Its enclosed housing with four-channel design enables accurate intersection detection, and the backlight helps reduce false identification rates. The optical encoder motor has a torque of 1.5kg/cm, a speed of 200rpm, and a detection accuracy of 1°, ensuring stable, precise movement of the robot.
- Processor: 240 MHz CPU frequency, dual-core Xtensa 32-bit LX6
- ROM: 448 KB
- SRAM: 520 KB
- Number of simultaneously loaded programs: up to 8
- Connectivity: Bluetooth + WiFi
- On-board sensors: light sensor, microphone (for recording and with sound sensor function), gyroscope, accelerometer
- Built-in display: 1.44" full color
- Battery capacity: 2500 mAh
- Rated power: 27.75 W
- Number of DC motor ports: 2
- Number of servo ports: 4
- Number of ports compatible with LED strip: 2 (common port with servo drive)
- Number of Arduino compatible ports: 2 (shared servo port)
- Number of supported electronic expansion modules without limitation: up to 10
- Ultrasonic sensor: Housing: plastic
- Built-in chip: yes
- Number of LEDs in the backlight: 8
- Parts List: 1 × CyberPi Controller 1 × mBot2 Shield Expansion Board 1 × Ultrasonic Distance Sensor 1 × 4 RGB Sensor Array 1 × Robot Chassis 2 × Motor with Encoder 2 × Motor Cable 2 × Wheel 2 × Smooth Rubber Tire 1 × Mini Support Wheel 2 × mBuild Cable (10cm)1 × mBuild Cable (20cm)1 × USB Cable (Type-C)4 × M2.5 Screw * 12mm6 × M4 Screw * 25mm6 × M4 Screw * 14mm6 × M4 Screw * 8mm 1 × Screwdriver 1 × Ride the Line paper field
