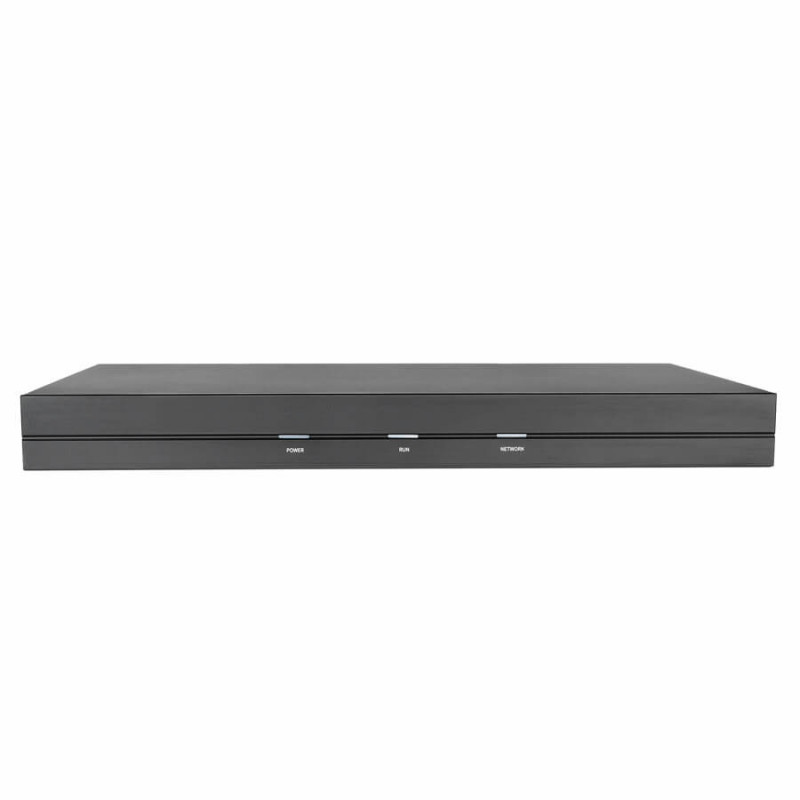

Event audio processor AP88II
Eventa AP88II is a digital audio DSP processor with 8 analog inputs and 8 analog outputs. It has USB audio for music playback, recording and video conferencing. Event's AP88II audio processor integrates AI-based intelligent noise reduction technology to reduce ambient noise levels to provide users with clear audio during meetings.
Price on request
- Input/output ports: 8 analog, universal inputs (mic-line) with phantom power support 8 linear analog outputs LAN port GPIO port - 8 channels
- Oscillator: Built-in 1kHz oscillator, White noise, Pink noise
- Sampling frequency: 48 kHz THD+N: 105 dB
- Dynamic range: 120 dB
- Audio format: 24-bit MSB TDM
- Sampling rate/quantization bits: 48Kbps/24bits
- Input Gain: 0/3/6/9/12/15/18/21/24/27/30/33/36/39/42/45/48 dBu
- Phantom power supply: +48V/10mA
- Frequency Response: (20~20KHz): ±0.5dB
- Maximum level: +18 dBu THD+N: < -100 dB at 4 dBu
- Input dynamic range: 110 dB
- Output dynamic range: 112 dB
- Channel isolation: 108 dB at 1 kHz
- Input Impedance: 5.4 kOhm (balanced connection)
- Output impedance: 600 ohms (balanced connection)
- System latency: <3ms
- USB Audio: Two-way, in/out for matching with digital equipment
- Support for sound processing algorithms: AEC, AGC, ANC, AFS, AM
- Matrix switcher: Internal channel switching - 8x8, including built-in signal processing
- DSP processor: Built-in, for all input and output channels. Includes: gain, phantom power, crossover, compressor, limiter, gate, expander, parametric EQ, high-cut filter, phase switching, channel grouping, feedback suppressor, delay
- Web interface: Possibility of remote control from a computer
