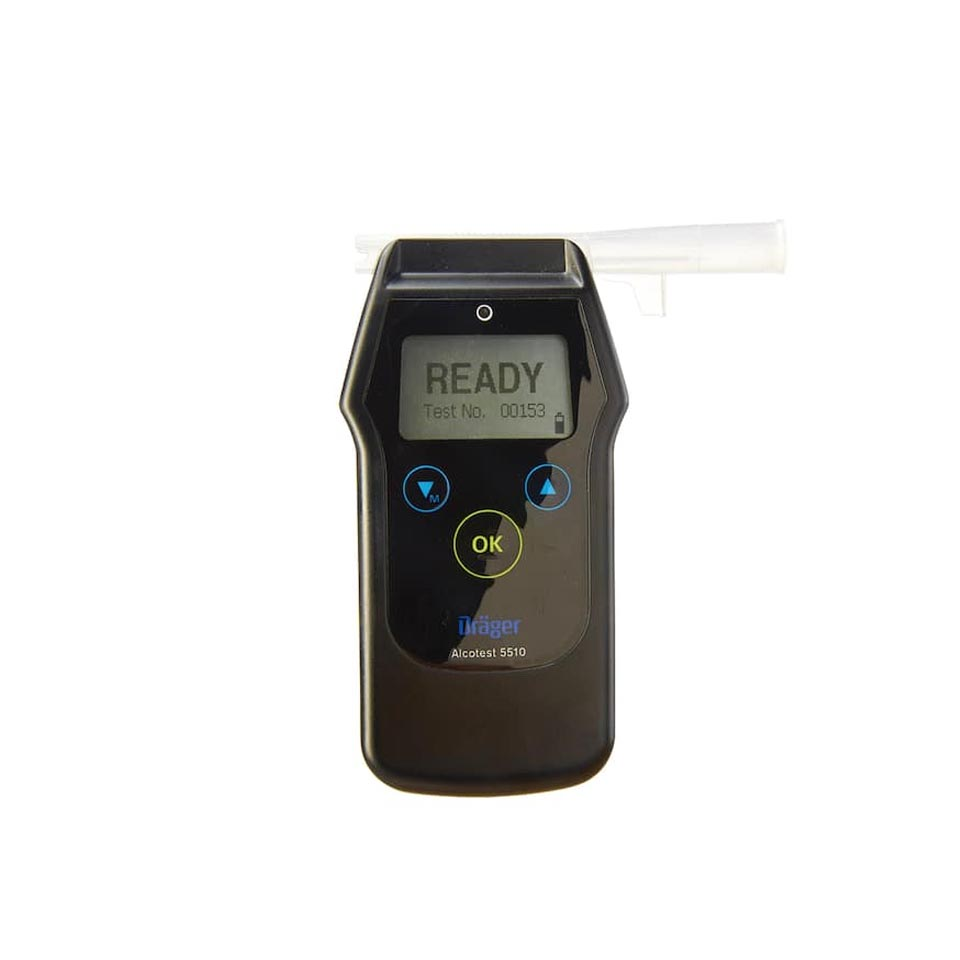

Alcotest 5510 ethanol vapor analyzer
Alcotest 5510 ethanol vapor analyzer. The analyzer provides accurate and fast analysis of exhaled air for the presence of alcohol. With a wide range of different configurations, the portable device can be easily adapted to local regulations. The special electrochemical sensor used in the device has a short response time. It allows you to quickly obtain readings even with high alcohol concentrations. Automatic calibration and sampling are provided. All functions required for measurement are activated by the "OK" button, while the other two buttons are used for navigation. The specially designed mouthpieces can be installed quickly and securely even in the dark. The limiter on the mouthpiece prevents the lips of the person being tested from coming into contact with the body of the device. Installation of the mouthpiece is intuitive and eliminates the possibility of error. The device eliminates the possibility of blockage: the non-closing air channel prevents any manipulation when taking a sample of exhaled air. The breathalyzer is capable of storing the last ten measurement results with the corresponding test numbers. You can call up individual results from the log using the menu keys. If the measuring range is exceeded, a message appears on the display. Power: two AA batteries. Features: versatility and reliability; ease of use; ease of use; integrated data logger; hygiene and safety; low energy consumption. Manba: https://www.nv-lab.ru/catalog_info.php?ID=6459
- Feature: Parameter
- Measuring range, mg/l: 0‒2.5
- Sampling: automatic sampling when minimum volume is reached
- Passive mode of sampling without a mouthpiece or manual initialization of sampling is possible
- Ready for use: approx. 6 s after switching on
- Measurement result output: approx. after 3 s (at 0 mg/l)
- approx. after 10 s (at 0.5 mg/l, at room temperature)
- Operating temperature, °C: -5...+50
- Humidity: 10‒100%, relative, non-condensing
- Ambient pressure, hPa: 600‒1400
- Display: Graphic LCD with backlight
- 41x24 mm
- LED: 3-color
- Data logger: stores the results of the last 10 tests with number
- Power supply: two AA batteries
- Mouthpiece Attachment: Mouthpiece (plug and snap technology)
- can be installed on the right or left
- Calibration: wet or dry gas calibration
- Housing: Impact resistant ABS/PC
- Overall dimensions, mm: 142x75x36
- Weight, g: 195 g
- Shock and vibration resistance: Complies with EN 60068-2-6, EN 60068-2-29
- Marking: EU 89/336/EC (electromagnetic compatibility)
- Standards: EN 15964
