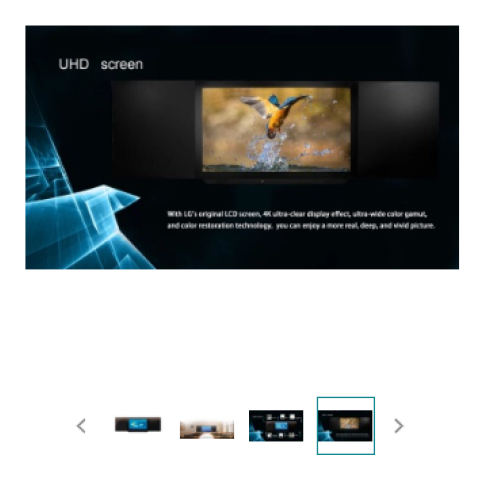

Interactive complex with chalk surface AlfaDispLay ADLEB-75B BlackBoard 75”
AlfaDispLay ADLEB-75B BlackBoard 75" is an interactive complex of the latest generation, combining an interactive panel and a traditional chalk board. This solution allows you to write with chalk on the entire surface of the board, including the screen of the interactive panel. This approach significantly increases the efficiency of the teaching process and meets the needs of teachers who cannot imagine a lesson without the use of a traditional chalk board. The interactive panel software has a built-in “Interactive Whiteboard” mode, which allows the teacher to use the usual functions - draw, write by hand, add geometric shapes, function graphs, etc.
Price on request
- Screen diagonal 75"
- DLED screen backlight
- Aspect ratio 16:9
- Screen resolution 3840x2160px (4K)
- Display size 1692×931mm
- Color depth 10bit, 1.07 billion.
- Screen brightness 300cd/m²
- Screen contrast 1400:1
- Screen response time 8ms
- Viewing angle 178°
- Screen life time minimum 50,000 hours
- Screen layout Landscape
- Surface material Tempered glass
- Touch sensor Capacitive
- Number of touches 10
- Sensor response time ≤4ms
- Scanning frequency 100Hz
- Positioning accuracy ±1 mm within 90% of the working area
- Speakers 2 × 15W
- Allowable temperature/humidity -15℃~55℃/20%～90%
- Operating temperature/humidity 0℃-40℃/20%～80%
- Fingerprint scanner Optional
- Induction loop Optional
- Soundbar Optional
- Built-in camera Optional
- Built-in microphones Optional
- Radio microphones Optional
- Document camera Optional
- Active stylus Optional
- Android version 6.0/8.0
- RAM 2/4GB
- ROM 16/32GB
- Interfaces OPS slot - 1, HDMI 2.0 input – 3, USB-A 2.0 – 3, USB-B 2.0 – 2, USB TYPE-C – 1, RJ45 input – 1, RJ45 output – 1, RS-232 – 1, VGA input – 1, VGA Audio input – 1, CVBS – 1, microphone (3.5mm) – 1.
- Power consumption Maximum - 210W
- Standby ≤0.5W
- Operating voltage AC 100-240V, 50/60Hz
- Dimensions 4200×1302×52mm
- Panel weight 112 kg
