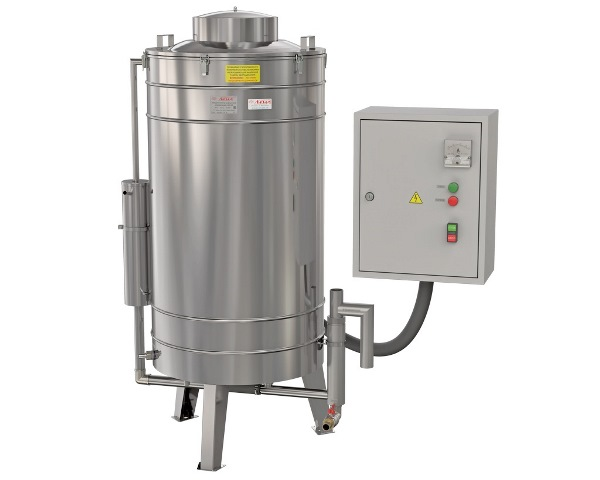

Water distiller DE-140 (140 l/h)
Medical water distiller DE-140 designed for producing distilled water of type 3 in accordance with GOST R 58144-2018 “Distilled water”, FS.2.2.0020.18 “Purified water” in pharmacies, hospitals, laboratories and other institutions, as well as for purifying drinking water from radionuclides and using the distillate for drinking purposes after its mineralization. Electrodes are used as heating elements. The quality of the source water entering the water distiller must comply with the requirements of SanPiN 2.1.4.1074-01 with an ammonia content of no more than 0.2 mg/l. Features: Using electrodes as heating elements. Reliability of operation when deposits form on heating elements (electrodes), which do not burn out, like heating elements when excess deposits form on the surface. Ideal for businesses, laboratories, medical institutions with hard water, the distiller is less sensitive to the quality of the source water and the amount of excess deposits on the heating elements. Obtaining type 3 water without the use of expensive filters, resins, and special membranes. It has the ability to combine with a reservoir - a collector for storing purified water into a single system, with automatic shutdown of the water distiller after filling the collector. Possibility of connecting the water entering the distiller using a dual-circuit circuit to reduce the consumption of source water by 70...80%. Units and parts in contact with steam and distilled water are made of stainless steel 12Х18Н10Т and other materials that do not affect the quality of the water produced. Tube condenser. Possibility of separate water supply for evaporation and cooling for connection to a closed water circulation technological system (if available at the enterprise). Automatic termination of the distillation process and electricity consumption when the water supply is stopped and the water level in the evaporation chamber drops below the permissible level. Automatic maintenance of the amount of water in the water distiller that goes to evaporation. Demountable condensation chamber design. Spare set of phase electrodes, spare protective electrode, distillate drain tube included. Manba: https://www.nv-lab.ru/catalog_info.php?ID=2129
- Parameter: Value
- Productivity, l/h: 140
- Cooling water consumption, l/h: 1000
- Source water pressure, MPa: 0.1…0.4
- Specific conductivity of water at the outlet, µS/cm: 3…4.5
- Temperature of produced water, °C: 50
- Power, V/Hz: 380/50
- Power consumption, kW: 84
- Dimensions (W×D×H), mm: - water distiller - control panel: 810×630×1420;400×220×500
- Weight, kg: 87
- Coefficient of water purification from radionuclides, not less than: 4000
- Average service life, years: 8
