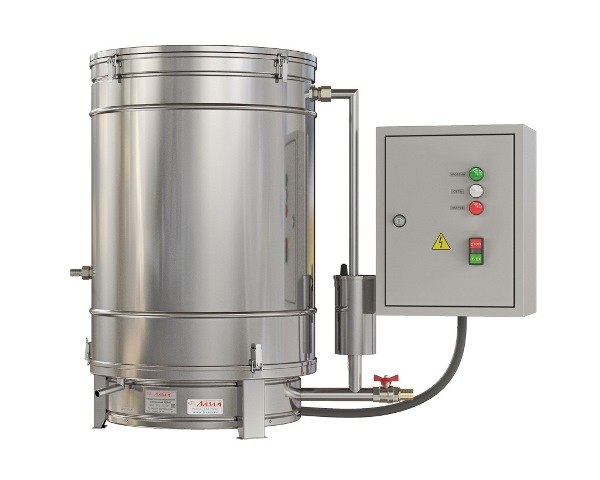

Water distiller ADE-40 (40 l/h)
Medical water distiller ADE-40 designed to produce distilled water of type 3 in accordance with GOST R 58144-2018 “Distilled water”, FS.2.2.0020.18 “Purified water” in pharmacies, hospitals, laboratories and enterprises of various industries. Stainless steel heating elements 3.0 kW, 220 V in the amount of 9 pieces are used as heating elements. The quality of the source water entering the water distiller must comply with the requirements of SanPiN 2.1.4.1074-01 with an ammonia content of no more than 0.2 mg/l. Features: Obtaining type 3 water without the use of expensive filters, resins, and special membranes. Floor-standing version. Can be combined with a storage tank purified water into a single system, with automatic shutdown water distiller after filling the collection. Unique quick-disassemble design, greatly facilitating cleaning and maintenance. Units and parts in contact with steam and distilled water made of stainless steel 12Х18Н10Т and other materials, not affecting the quality of produced water. Automatic termination of the distillation process and consumption electricity when the water supply stops and the water level drops in the evaporation chamber is below the permissible level. Automatic maintenance of the amount of water in the water distiller that goes to evaporation. Distillate drain tube included. Possibility of obtaining distillate with a temperature from 25 to 40 °C using a distillate cooler (optional). It is possible to modify the distiller for separate water supply to evaporation and cooling (on request). Manba: https://www.nv-lab.ru/catalog_info.php?ID=2126
- Parameter: Value
- Productivity, l/h: 40
- Cooling water consumption, l/h: 320
- Source water pressure, MPa: 0.1…0.4
- Specific conductivity of water at the outlet, µS/cm: 3…4.5
- Temperature of produced water, °C: 70…85
- Power, V/Hz: 380/50
- Power consumption, kW: 27
- Dimensions (W×D×H), mm: - water distiller - control panel: 890×470×550;310×220×395
- Weight, kg: 40
- Average service life, years: 8
