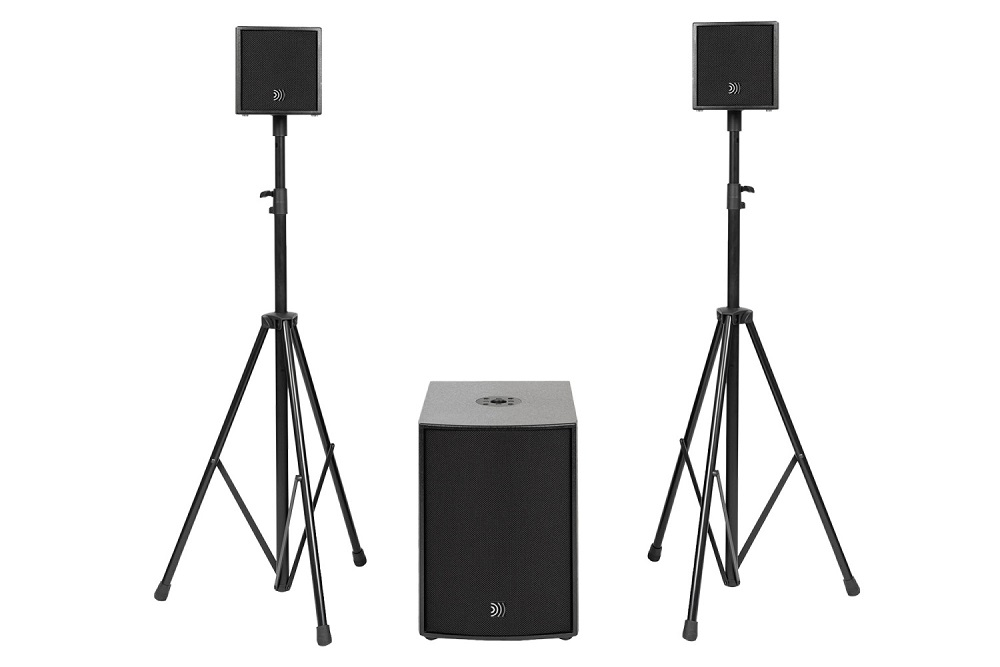

Active speaker kit DS Proaudio ANT
Compact and powerful active acoustic set DS Proaudio ANT, consisting of two passive satellites with coaxial 6" (1" driver) BMS speakers and a subwoofer with a 12" speaker of our own production (3" coil). The subwoofer has a built-in 3-channel amplifier with a DSP module. Set power 2x200 W + 600 W. Despite its very modest size, the kit really delivers the stated power cleanly and without distortion. An excellent solution in situations where it is necessary to create high sound pressure over a wide frequency range, while increased requirements are placed on the size and appearance of the systems. There is a processor settings switch (preset), you can select the appropriate factory setting or make and save your own. To connect the built-in processor to a computer, an RS485 to USB adapter is required. Not included in delivery. The set is perfect for small rooms (up to 50m2), where you need to get maximum power without the ability to accommodate full-size speaker systems.
- Type of speaker system (hereinafter referred to as the product or speaker): two-way passive coaxial speaker
- Coaxial speaker: LF HF: 6" ferrite speaker on a cast frame with 1.5" coil 1" ferrite driver
- Operating frequency range (±3 dB) (+3/-10 dB): 170-20,000 Hz 130-20,000 Hz
- Crossover tuning frequency: 1,500 Hz
- Connectors: 4pin Speakon
- Maximum peak sound pressure level: 120 dB 126 dB
- Directional pattern: 90° conical
- LF/HF power RMS peak: 130/40 W 500/200 W
- Nominal impedance: 8 ohms
- Body material: multi-layer birch plywood
- Housing finish: wear-resistant polyurethane coating
- Additional characteristics: M10 on the bottom plane, two M6 axle boxes on the side walls
- Overall dimensions WxDxH: 200x200x200 mm
- Weight: 4 kg
- Type of speaker system (hereinafter referred to as the product or speaker): active low-frequency speaker of the bass reflex type
- Speaker: 12" ferrite speaker on die-cast frame with 3" coil
- Operating frequency range (±3 dB) (+3/-10 dB): 35-300 Hz 30-300 Hz
- Built-in DSP module: 2in – 3out crossover (x-over); delay; equalizer (EQ); limiter (clipper); sensitivity (gain).
- Input sensitivity: 1.6 V
- Connectors input / output audio output power control: XLR male / XLR female 2 x 4pin Speakon 1+ 1- RS485NET / RS485NET PowerCon blue
- Maximum peak sound pressure level: 126 dB 132 dB
- Low frequency channel power: 600 W
- Power of additional channels: 2x200/8Ω; 2x300/4Ω
- Supply voltage: 185-240 V (50 Hz)
- Additional characteristics: glass for installing a 35 mm rod
- Overall dimensions WxDxH: 350x460x475 mm
- Weight: 23 kg
