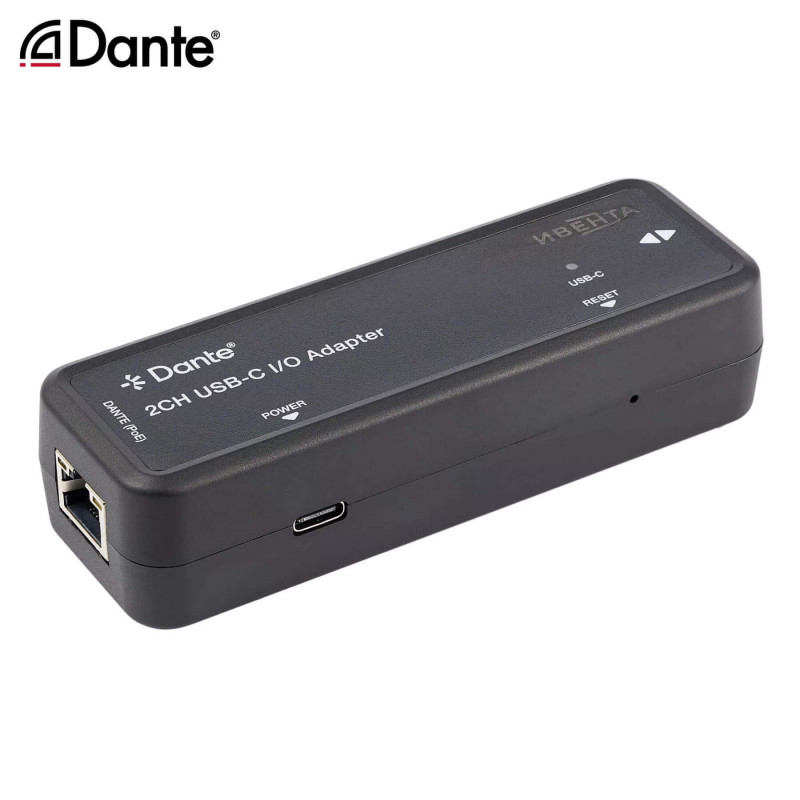

Event adapter AD22S
Eventa AD22S is a dual-channel USB-C I/O adapter with Dante support. It is an audio converter based on the Dante Ultimo 2x2 solution and provides conversion between two-channel USB audio and two-channel Dante digital audio. The adapter supports local power via the USB-C port and PoE function.
Price on request
- Control Method: Dante® Controller
- Audio Latency: Configurable Dante® Device Latency (Supports 1, 2, or 5 ms, configurable via Dante® controller)
- Transmission distance: 100 meters (CAT6/6A/7)
- USB Audio Input: Digital Audio Input, PCM 2CH 44.1K-96kHz 16/24bit
- USB Audio Out: Digital Audio Out, PCM 2CH 44.1K-192KHz 16/24bit
- DANTE input/output: Digital audio input/output, PCM 2CH 44.1K-96 kHz 16/24 bit
- Interface: USB audio input
- Input impedance: -
- Line Input Level (Maximum): -
- Frequency response: 20 Hz - 20 kHz (-/+0 dB)
- Dynamic Range: >130dB, 1kHzA-weighted
- Audio signal-to-noise ratio: >130dB, 1kHzA-weighted
- Audio THD+N: <0.01% at +4dBu, 1KHz
- Audio Out Sync Latency: <10ms
- Electrostatic discharge protection: IEC 61000-4-2: ±8 kV (air discharge) ±4 kV (contact discharge)
- Connections: DANTE (RJ45, digital audio in/out, PoE) x 1 USB-C (USB 1.0/2.0, audio in/out, 12-pin) x 1 POWER (USB-C power and firmware upgrade, 12-pin) x 1 RESET button x 1 USB-C LED (indicator power supply 5V, green) x 1
- USB input: 5V/500mA
- PoE input: PoE IEEE802.3af Class 0
- Power Consumption: 1.65W (Max)
- Operating temperature: 0 to 40°C
- Storage temperature: -20 to 60°C
- Relative Humidity: 20% to 80% RH (non-condensing)
- Housing: Plastic
- Color: Black
- Dimensions (W x D x H): 115 x 40 x 28 mm
- Weight: 94 g
