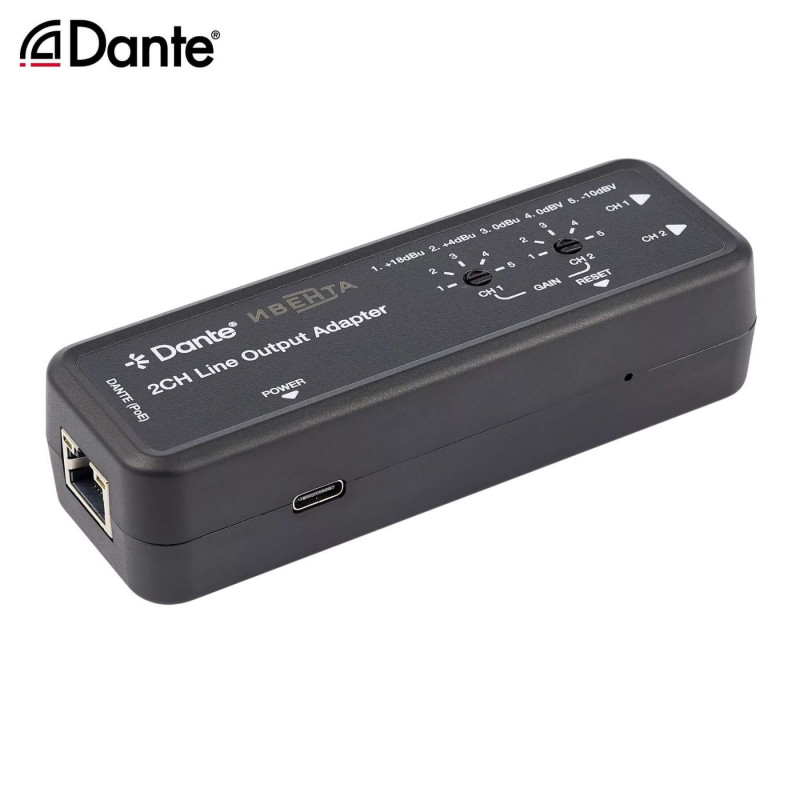

Event Adapter AD22LO
Eventa AD22LO is a two-channel linear output adapter with Dante support. It is an audio converter based on the Dante® Ultimo 2x2 solution. The AD22LO converts two-channel Dante digital audio into two-channel balanced/unbalanced analog audio. The analog audio output supports 5-level gain control. The adapter supports local power via the USB-C port and PoE function.
Price on request
- Input: Dante® 2CH digital audio
- Output: Two channel balanced/unbalanced analog audio
- Control Method: Dante® Controller
- Audio Latency: Configurable Dante® device latency (supports 1, 2 or 5 ms, configurable via Dante® controller)
- DANTE input: Digital audio input, PCM 2CH 44.1K-96KHz 16/24bit
- Line Out: Analog Audio Out, Balanced/Unbalanced 2CH, Max Output Level +18dBu
- Interfaces: Line output
- Input Impedance: 600 ohms balanced 300 ohms unbalanced
- Line Input Level (Maximum): +18 dBu (6.15 Vrms) with balanced audio +12 dBu (3.08 Vrms) with unbalanced audio
- Frequency response: 20 Hz – 20 kHz (-/+0.5 dB)
- Dynamic Range: > 100 dB at 0 dBc, 1 kHz, amplitude weighted
- Audio signal-to-noise ratio: >100 dB at 0 dBc, 1 kHz, amplitude weighted
- Audio THD+N: <0.01% at +4dBu, 1KHz
- Audio output sync delay: < 10ms
- Transmission distance: 100m (CAT6/6A/7)
- Electrostatic discharge protection: IEC 61000-4-2: ±8 kV (air discharge) ±4 kV (contact discharge)
- Input: DANTE (RJ45, PoE) x 1 POWER (USB-C USB powered only, 12-pin) x 1
- Output: CH1/CH2 LINE IN (Phoenix 3.5mm 6-pin) x 1
- Others: RESET button (system reset button) x 1 GAIN knob (5-level DIP switch) x 2
- USB input: 5V/500mA
- PoE input: PoE IEEE802.3af Class 0
- Power Consumption: 1.25W (Max)
- Operating temperature: 0°C to 40°C
- Storage temperature: -20°C to 60°C
- Relative Humidity: 20%~80%RH (relative humidity, non-condensing)
- Housing: Plastic
- Color: Black
- Dimensions (W x D x H): 115 x 40 x 28 mm
- Weight: 94 g
