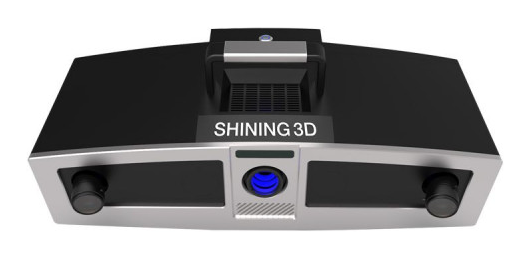

3D scanner Shining3D OptimScan-5M Plus
3D scanner Shining3D OptimScan-5M Plus - Stationary 3D scanner with a maximum scanning area of 200x150 mm.
Price on request
- Warranty: 1 year
- Scanning depth (mm): 100-400
- Scanning area: 200x150 mm
- Light source: Blue light (LED)
- Number of cameras: 2
- Matching method: Automatic/manual matching relative to the anchor point
- Resolution: 5 MP
- Camera resolution: 5,000,000x2
- Distance from point to point, in the center of the measured volume, mm: 0.04-0.16 mm
- Scanning speed: < 2 sec
- Software: Processor：Intel core i7 3770 or higher. Video card: NVIDIA GeForce GT 670 or higher. Memory:16G DDR3 1600 or higher
- Specialization: Reverse engineering; Energy industry
- Country of origin: China
- Scanner technology: Non-contact structured light scanning
- File types: ASC, STL, PLY, RGE, P3, PF
- Volume accuracy: 0.08mm/m
- Scanning accuracy, microns: 15
- Color scanning: no
