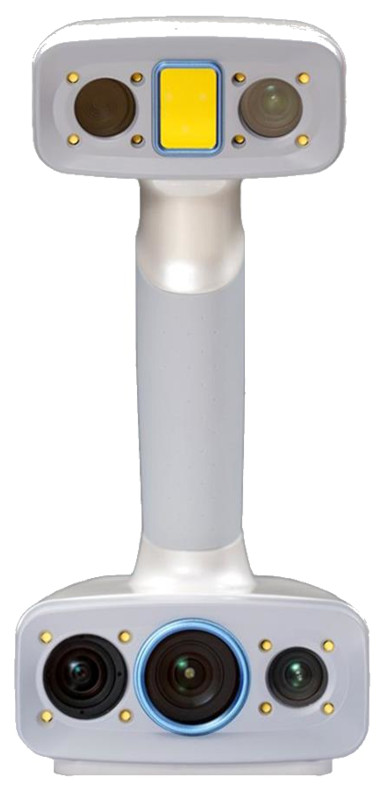

3D scanner Shining 3D EinScan H2
3D scanner Shining 3D EinScan H2 is the latest handheld 3D scanner, equipped with a hybrid light source and an excellent color texture camera with a resolution of 5 MP. EinScan H2 offers the user two light sources at once - LED with white light and infrared. The EinScan H2 3D scanner provides greater flexibility with a hybrid lighting source. White light mode is used for fast scanning with high accuracy and professional-grade data. The IR VCSEL mode is used when you need to scan a person or under particularly difficult scanning conditions. The soft algorithm used in this mode provides fast but smooth scanning with automatic compensation for small movements, and is also optimal when scanning dark and light hair. Unlike the previous generation model, the new product is capable of scanning bright, rich colors and photorealistic textures with increased accuracy and a resolution of 5 megapixels. High data quality is provided by 3 infrared VCSEL projectors. They adapt to the material of the scanned object and lighting conditions. The new model also boasts a wide scanning area, and the working distance to the object is easily adjustable. The working distance can be easily adjusted between 200 and 1,500 mm. You can flexibly configure the scanning volume. The field of view or FOV of the H2 model can range from 780 to 900 mm. Due to this, the 3D scanner can be used in a variety of situations, achieving effective scanning of large and small objects even in a narrow space. The Shining 3D EinScan H2 3D scanner is user-friendly and safe when it comes to scanning the human face and body. It allows scanning without markers. There is no flicker when working in IR mode, which eliminates discomfort if you are scanning a person. The scanner itself weighs just over 700 grams. It fits comfortably in the hand, and operating it will not raise any questions even for a beginner. Professional EXScanH and Solid Edge SHINING 3D Edition software has a simple user interface, many automated processing functions and intelligent data quality indicators. Moreover, EinScan H2 has its own scanning SDK, which allows you to integrate SHINING 3D technologies into other software and even a mobile application.
- Connection interface: USB 3.0
- Scanner type: Handheld
- Scanning technology: Optical structured illumination
- Scanning Accuracy: 0.05mm (White Light Mode) | 0.15 mm (IR mode)
- Volumetric Accuracy: 0.05mm + 0.1mm/m (White Light Mode) | 0.15 mm + 0.3 mm/m (IR mode)
- Number of cameras: 2 pcs.
- Scan/Measurement Speed: 1,200,000 points/sec (White Light Mode) | 1,060,000 dots/sec (IR mode)
- Working distance to object: 200 - 700 mm (White light mode) | 200 - 1500 mm (IR mode)
- Texture/color scanning: Yes
- Light source: LED
- Operating system: Win10/11, 64bit
- Processor: Intel I7-11700 or better
- Video card: NVIDIA GTX/RTX, RTX 2060 with 6Gb video memory and higher
- RAM: 64Gb
- Certificates: CE FCC, ROHS, WEEE, KC
- Supported file formats: PLY, STL, OBJ, ASC, P3
- Compatible OS: Windows
- Software: EXScanH, Solid Edge SHINING 3D Edition
- Delivery set: Scanner; USB flash drive; Power adapter; Data cable and power cord (USB, DC input); Power cord; Calibration board; Markers; Calibration panel
- Product dimensions: 108x110x237 mm
- Packaging dimensions: 200x200x290 mm
- Net weight: 0.73 kg
- Gross weight: 3 kg
