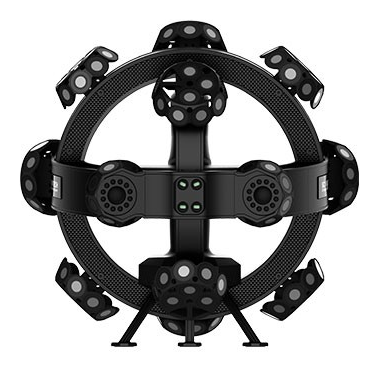

3D scanner Scantech TrackScan-P22
The TrackScan 3D system is a high-precision 3D scanner with marker-free operation, your ability to deploy a metrology laboratory in the place where it is needed. The combination of three-dimensional laser scanning technology (resolution 0.020 mm) and a flexible tracking function - repeatability at one point of 0.030 mm - ensures fast and accurate collection of data on the overall dimensions of a part in a workshop environment. Composite Positioning - Supports camera tracking and marker tracking modes. In the E-Track blind spot, the scanner can recognize markers that continue to operate in a narrow space, such as the cockpit and dashboard of a car interior. Dynamic measurement - Thanks to the dynamic referencing feature, the TrackScan 3D system can operate normally while the part is repositioned or moved along the E-Track. The retractable measurement volume dynamically expands by adjusting the position of the E-Track while still maintaining accuracy. The special housing design ensures strength, durability and measurement accuracy regardless of environmental changes, vibrations and thermal fluctuations.
- Scan Mode: R Mode, B Mode
- Light source: R 7 red cross laser lines (+1 additional red laser line (extra mode)) B 7 blue parallel laser lines
- Accuracy: up to 0.030 mm
- Deep hole scanning: Supports
- High detail scanning: Supports
- Measurement speed: 480,000 measurements per second
- Volumetric accuracy (without additional equipment): 9.1 m³-0.064 mm 16.6 m³-0.078 mm
- Volumetric accuracy (with MSCAN): 0.044 mm + 0.025 mm/m
- Single point repeatability (T-Probe): 0.030 mm
- Laser Class: Class II (Eye Safe)
- Part size range (recommended): 200~6000mm
- Focal length: 300mm
- Depth of field: 200 mm
- Scanning area: Up to 275 x 250 mm
- Output formats: .stl, .ply, .obj, .igs, .stp, wrl, .xyz, .dae, .fbx, .ma, .asc (Optional support for Ira data)
- Operating temperature range: 5 ~ 40 °C;
- Patents: CN106500627, CN106500628, CN206132003U, CN204854633U, CN204944431U, CN204902788U, CN105068384, CN105049664, CN204963812U, CN204902785U, CN106403845, US10309770B2
