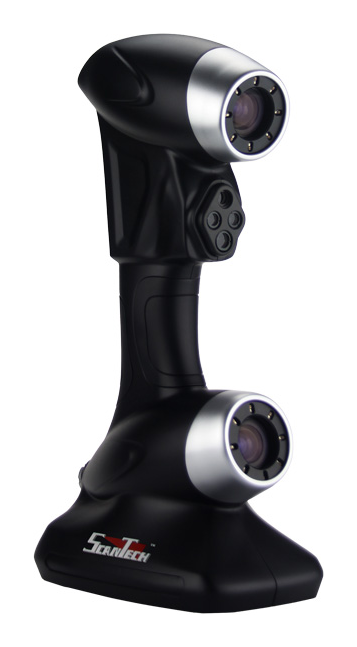

3D scanner ScanTech PRINCE 335
3D scanner ScanTech PRINCE335 is a production hand-held 3D scanner that combines 2 operating modes - high-speed and highly detailed. The scanner fully exploits the high data acquisition speed of the red laser and the ultra-fine scanning of the blue laser, having an objectively better combination of simple operation and high accuracy. Minimum resolution can be as low as 0.02 mm, which is more than twice the resolution of the closest comparable hand-held 3D scanners. This greatly improves the detail of the scan. And the blue scanning mode gives the best detail for handheld scanners on the market! The scanner includes the ability to switch in real time between standard R mode and Hyperfine scan B mode. Standard R mode is inherited from the traditional ScanTech HSCAN handheld scanner, and the innovative B mode has characteristics that can be used to visualize the smallest details. These two modes of operation can integrate scan data into a single file, allowing you to find the right balance between efficiency and detail. The camera speed in B mode is 120 frames per second, which is twice as fast as other handheld scanners on the market.
- Scan Mode: R Mode, B Mode
- Light source: R 3 red cross lasers (+1 extra red laser line) B 5 blue parallel laser lines
- Measurement speed: R 265000 measurements/s B 320000 measurements/s
- Camera frame rate: R 60 fps B 120 fps
- Laser class: CLASS II (safe for eyes)
- Resolution: R 0.05 mms B 0.02 mms
- Accuracy: up to 0.03 mm
- Volumetric accuracy: R 0.02 mm+ 0.08 mm B 0.01 mm+ 0.08 mm
- Volumetric accuracy (with MSCAN): 0.02 mm+ 0.025 mm
- Standby distance: R 300 mm B 150 mm
- Depth of field: R 250 mm B 100 mm
- Effective working range: R 200-450 mm B 100-200 mm
- Output formats: .stl, ply, .xyz, .dae, .fbx, .ma, .obj, .asc, .igs
- Dimensions: 315x160x105 mm
- Net weight: 0.95kg
- Country of origin: China
