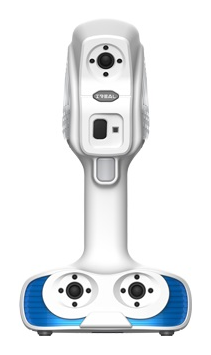

3D scanner ScanTech IReal 2S
3D scanner ScanTech iReal 2S is a lightweight portable 3D scanner that works using an organized illumination system. The iReal 2S scanner uses two light sources: visible blue LED and invisible infrared. Both are safe for the eyes. This model is highly effective in reproducing high-definition images, capturing detail data, and conveying colors of scanned objects using HD cameras. The scanner is ideal for use in medical institutions, for work in plastic surgery and prosthetics. iReal 2S is ideal for creating high-quality, textured and accurate 3D models. To scan people safely. Simple scanning of art objects. Decor elements. To train young professionals in 3D scanning, reverse engineering and geometry control. Highly realistic scanning for VR environments, films, computer games, 3D printing and creating virtual museum exhibits, etc.
- Working distance: 300 - 600 mm
- Color scanning: Yes
- Measurement speed: 550,000 points/sec
- Recommended object size: 0.2-3 m
- Resolution: Mode B - up to 0.2 mm, Mode R - up to 0.25 mm
- Scanning mode: By reflective markers (tags), By texture, By geometry
- Optimal distance to object: 400 mm
- Scanning area: Mode B - 200 x 135 mm ~ 400 x 270 mm, Mode R - 200 x 165 mm ~ 400 x 330 mm
- Minimum size of measured objects: 20 cm
- Maximum size of measured objects: 300 cm (3 m)
- Laser (Laser Class): Eye-safe
- Backlight source: Mode B - LED, blue light, Mode R - infrared
- Radiation source: Mode B - LED, blue light, Mode R - infrared
- Volumetric accuracy: Mode B - 100 µm + 0.03%, Mode R - 150 µm + 0.03%
- Accuracy: Mode R - up to 150 microns, Mode B - up to 100 microns
- Calibration speed: 30-60 sec
- Data acquisition rate: 550,000 points/sec
- Physical port: USB 3.0
- Frame rate per second: 15 fps
- Color transmission: Color scanning capability; Scan the surface only
- Application: Reverse engineering/People scanning/Imaging
- Manufacturer: ScanTech (China)
- Scanned object size: Scanning small objects (up to 4 meters)
- Scan Type: Structured Light 3D Scanners / Handheld 3D Scanners
- Applications: Architecture / Automotive / Design and Advertising / Home Decor / Mold Making / Medical / Education and Research / Railway / Architecture and Museums
- Type: Manual / Stationary
- Technology: Optical triangulation of structured illumination
- Output formats: Obj, Stl, Wrl, Ascii, Aop, Csv, Ply, Ptx, E57
- Minimum system requirements: CPU: i7-6820HQ, RAM: 16/32 GB, 2133 MHz DDR4, GPU: NVIDIA GTX 1060 NVIDIA Quadro M1000M 2 GB GDDR5, Windows 7-64 bit, Windows 8
- Software: ScanViewer (included)
- Data formats: Obj, Stl, Wrl, Ascii, Aop, Csv, Ply, Ptx, E57
- Weight: 0.91 kg
- Working environment humidity: 10-80%
- Working environment temperature: from 0 to +30 °C
