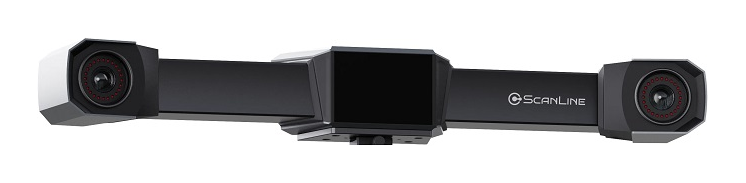

3D scanner ScanLine TrackerScan Pro L
In recent years, 3D scanning technologies have become an integral part of many industries, including manufacturing, prototyping and graphic design. In this context, one of the leading devices on the market is the portable optical coordinate measuring system ScanLine TrackerScan Pro L, which offers a number of excellent features. First of all, it is worth noting its scanning depth, reaching 400 mm, which ensures highly detailed objects. Class II laser is responsible for safety in use, which is safe for human eyes. This significantly expands the possibilities of using the device without additional precautions. The device can operate over a wide temperature range from -10°C to 40°C, making it suitable for use in a variety of environments. Another great feature of this device is its precision, with point spacing ranging from 0.01 to 10mm. This ensures exceptional scanning accuracy, making TrackerScan Pro L the ideal choice for maximum detail. TrackerScan Pro L stands out for its amazing performance, scanning up to 3,070,000 points per second. Probe, on the other hand, offers a speed of 100 measurements per second, which is also quite impressive. The weight of the system is divided between the main components: the main TrackerScan device weighs 8.4 kg, the scanner weighs 1,618 kg, and the Probe weighs only 0.5 kg. Such dimensions and weight make the system convenient to transport and operate. The device equipment includes modern interfaces for connecting and data transfer: USB 3.0, IEEE802.11n/ac and IEEE802.3ab, providing high speed and stability of the connection. The light source for TrackerScan is infrared LED, while the scanner itself uses 50 cross laser lines, 7 parallel lines and one single laser line to guarantee high scanning accuracy. The ScanLine TrackerScan Pro L 3D scanner is a high-tech device that combines advanced features and ease of use. Its high accuracy, safety and versatility make this scanner a reliable assistant for professionals in a wide range of fields.
- Interfaces: USB3.0、IEEE802.11n/ac、IEEE802.3ab
- Light source: Tracker: Infrared LED, Scanner: 50 cross laser lines, 7 parallel laser lines, 1 single laser line
- Working distance: 300 mm
- Scanning speed: Tracker Pro L: 3,070,000 points/sec, Probe: 100 measurements/sec
- Accuracy: Tracker Pro L: up to 0.023mm, Volumetric accuracy: 0.046mm（3.5m 15.6m3）/ 0.063mm（5m 45m3）/ 0.088mm（6m 76m3）/ 0.127mm（7.2m 128m3）
- File formats: .stl, .asc, .3mf
- Features: FOV: 650mm x 580mm (max)
- Scanning technology: Optical hybrid
- Scanning depth: 400mm
- Laser class: Class ll (safe for eyes)
- Operating temperature: -10°C - 40°C
- Dot Distance: 0.01~10mm
- Country of origin: Russia
- Dimensions: Tracker：1023 mm x 198 mm x 126 mm, Scanner：281 mm x 283 mm x 290 mm.
- Net weight: Tracker：8.4kg, Scanner：1.618kg
