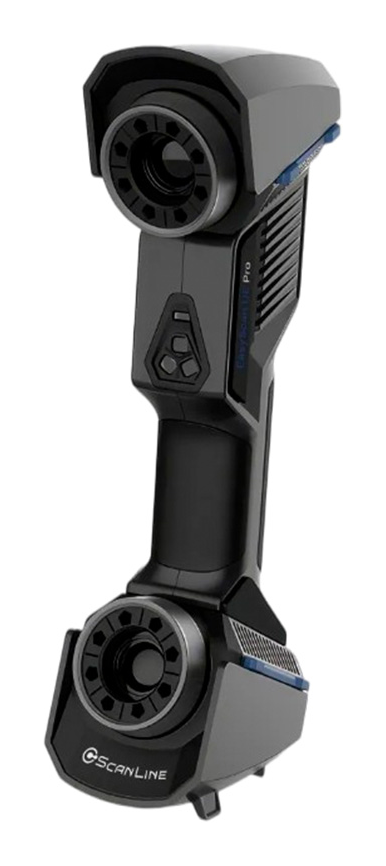

3D scanner ScanLine EasyScan UE Pro
3D scanner ScanLine EasyScan UE PRO - hand-held metrological 3D scanner. EasyScan UE PRO has high accuracy, metrology-grade accuracy and a lightweight design for scanning parts of different sizes. With built-in photogrammetry, ScanLine EasyScan UE PRO achieves high accuracy and exceptional detail, covering objects of various sizes from small to large. Patented Video Photogrammetry (VPG) eliminates the need for coded markers. It easily handles a wide range of industry applications and works great even outdoors. Accuracy down to 0.02 mm allows for quality control, assembly testing and reverse engineering. Blue laser scanning technology is less sensitive to ambient light, so it can achieve good results when working with reflective and dark surfaces. The ScanLine EasyScan UE PRO 3D scanner has several operating modes. 26 laser lines and a scanning area of 600x550 mm provide fast 3D scanning. 7 laser lines combined with 3.2 MP industrial cameras allow you to scan with high precision. A single laser line and an optimized camera angle ensure precise scanning of cavities and holes. EasyScan UE PRO's lightweight, ergonomic design and user-friendly scanning software make it easy to use and reduce training time.
- Connection interface: USB 3.0
- Scanner type: Handheld
- Scanning technology: Optical laser illumination
- Scanning accuracy: 0.02 mm
- Volumetric accuracy: 0.02+0.03 mm/m (standard mode); 0.02+0.015 mm/m (with built-in photogrammetry)
- Number of cameras: 2 pcs.
- Scanning area: 600x550 mm
- Scan modes: Multiple Lines Scan, Single Line Scan, Fine Scan
- Resolution: 0.02mm
- Depth of field: 170 - 680 mm
- Scan/measurement speed: 1850000 measurements/s
- Working distance to object: 200 - 300 mm
- Texture/color scanning: No
- Rotary table: Not supported
- Light source: 26 blue laser lines + 1 extra blue line
- Laser class: Second, eye-safe
- Operating system: Win10, 64 bit
- CPU: I7-8700
- Video card: NVIDIA GTX/RTX from GeForce RTX 3060 and higher
- RAM: 32 GB
- Certificates: CE，FCC，ROHS，WEEE，KC
- Supported file formats: OBJ, STL, ASC, PLY, P3, 3MF
- Compatible OS: Windows
- Software: 3D System (Geomagic Solutions), InnovMetric Software (PolyWorks), Dassault Systemes (CATIA V5 & SolidWorks), PTC (Pro/ENGINEER), Siemens (NX & Solid Edge), Autodesk (Inventor, Alias, 3ds Max, Maya, Softimage)
- Operating temperature: 20 - 40°C
- Permissible environmental humidity: 10 - 90%
- Product dimensions: 298x103.5x74.5 mm
- Packaging dimensions: 350x150x150 mm
- Net weight: 0.840 kg
- Gross weight: 2.5 kg
