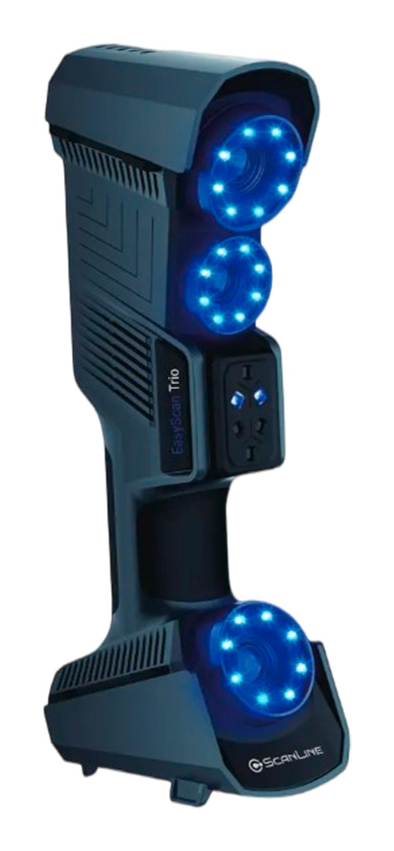

3D scanner ScanLine EasyScan Trio
3D scanner ScanLine EasyScan TRIO - handheld 3D scanner for scanning without markers. Unique innovative scanning technologies allow us to solve a wide range of control tasks in different industries. Intelligent self-positioning technology allows you to scan without markers. ScanLine EasyScan TRIO introduces advanced intelligent self-positioning technology to optimize the scanning process. With 98 laser lines, it eliminates the need for markers and provides high scanning speeds of up to 3,010,000 points per second. The 3D scanner has several operating modes. High precision mode allows you to capture the smallest details and textures of an object. Thanks to three industrial cameras, each with a resolution of 5 MP, EasyScan TRIO captures the finest details. 26 and one laser line are capable of scanning holes, deep pockets and rib walls. The ScanLine EasyScan TRIO features patented video photogrammetry (VPG), which eliminates the need for coded markers. This ensures consistent volumetric accuracy and simplifies the setup process for efficient scanning of large objects.
- Connection interface: USB 3.0
- Scanner type: Handheld
- Scanning technology: Optical laser illumination
- Scanning accuracy: up to 0.02 mm
- Volumetric accuracy: 0.02 + 0.03mm/m (0.02 + 0.015mm/m in photogrammetry mode)
- Number of cameras: 3 pcs.
- Scan modes: 98 lines, 26 lines, 7 lines, 1 line
- Depth of field: 360 mm
- Scan/measurement speed: up to 3,010,000 points/second
- Texture/color scanning: Yes
- Light source: LED, red light
- Laser class: Second, eye-safe
- Operating system: Win10
- CPU: I7-10700
- Video card: NVIDIA GTX/RTX series, greater than or equal to GeForce RTX 3060
- RAM: 16GB
- Supported file formats: PLY, STL, OBJ, ASC, 3MF, P3
- Compatible OS: Windows
- Working environment temperature: 0~40℃
- Allowable environment humidity: 10~90%
- Product dimensions: 331x120x76 mm
- Packaging dimensions: 370x200x200 mm
- Net weight: 0.985 kg
- Gross weight: 2.5 kg
