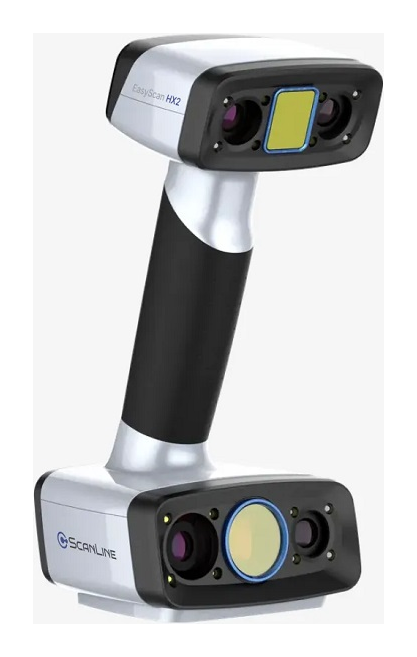

3D scanner ScanLine EasyScan HX2
The ScanLine EasyScan HX2 hybrid 3D scanner is an updated version of the popular model, providing increased accuracy up to 40 microns and speed up to 1.6 million points/sec. It combines two scanning modes - laser and LED, which makes it a universal solution for various tasks: from industrial quality control to artistic digitization.
Price on request
- 3D scanning technology: Optical triangulation
- Light source: Blue LED or 13 cross laser lines
- Accuracy: Up to 0.05 mm
- Volumetric accuracy: 0.05 + 0.1 mm/m
- 3D resolution: Up to 0.25mm
- Speed: 1,200,000 points/sec, 20 FPS
- Tracking: By markers, geometry, texture, hybrid
- Working distance: 470 mm
- Depth of field: 200 – 700 mm
- Maximum grip area: 420 × 440 mm
- Accuracy: Up to 0.04 mm
- Volumetric accuracy: 0.04 + 0.06 mm/m
- 3D resolution: Up to 0.05mm
- Speed: 1,600,000 points/sec, 120 FPS
- Tracking: By markers
- Depth of field: 350 – 610 mm
- Maximum grip area: 380 × 400 mm
- Color and texture capture: No
- Software: EXScan HX
- Export formats: OBJ, STL, ASC, PLY, P3, 3MF
- Connection: USB 3.0
- Certification: CE, FCC, ROHS, WEEE, KC
- Country of origin: Russia
- Warranty: 12 months
- Dimensions: 108 × 110 × 237 mm
- Weight: 745 g
