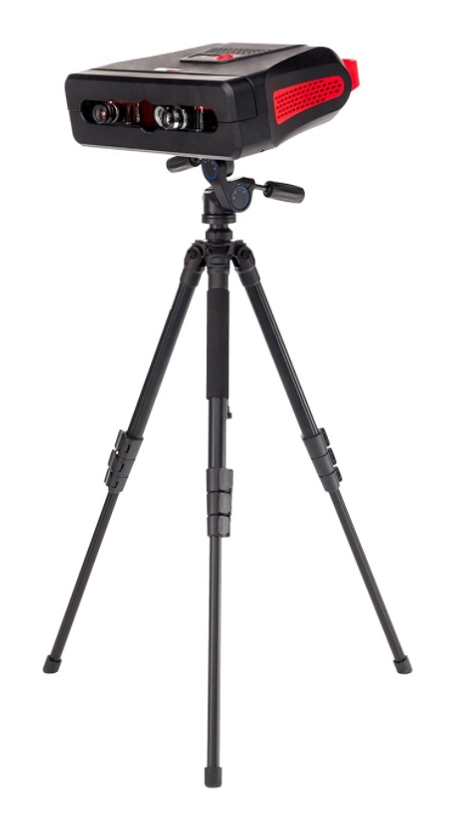

3D scanner RangeVision PRO
The RangeVision PRO 3D scanner allows you to scan models of any size with high accuracy. Despite the high technical characteristics, the device is significantly lower in price than its foreign analogues. Blue illumination reduces the effect of lighting on scanning results and ensures accurate readings. The scanner operates on the principle of structured illumination and supports various types of lenses, so it is suitable for a wide range of applications, from jewelry to car repair shops.
Price on request
- Scanning technology: Structured illumination
- Projector resolution: 1920 x 1080
- Scanning area, mm: 550x340x360
- Working distance, m: 0.9
- Accuracy, microns: 60
- 3D resolution, mm: 0.18
- Object size: from 5 mm to 5 m
- Ability to capture texture: yes
- Camera resolution: 6.4 megapixels
- Stitching the model: by markers, by geometry
- Received formats: OBJ, PLY, STL, PTX, ASCII
- Scanner power: 220-250V
- Minimum PC requirements: supplied with a control computer (Mini-PC, Intel® Core™ i7, 16GB DDR4, 240GB SSD, Win 10 PRO) with pre-installed ScanCenter NG software
- Connection interface: HDMI, 2 x USB 3.0 USB 2.0 for desk
- Supported OS: Windows 7/8.1/10 64bit
- Turntable: yes
- Table platform diameter: 32 cm
- Maximum table load: 60 kg
- Table power: 220 V – 15.5V/2A
- Dimensions of the scanner in the case: 620x420x460
- Scanner weight: 6.5 kg
- Scanner weight in case: 17.5 kg
- Certificates: EAC, SI Register
- Warranty: 1 year
