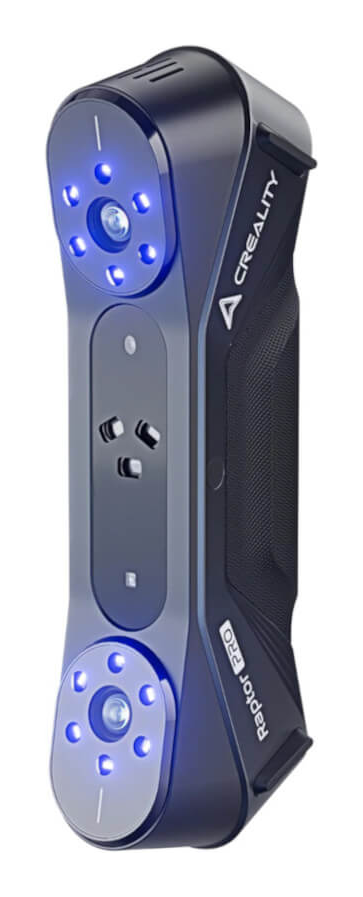

3D scanner Creality3D Raptor Pro
The Creality Raptor Pro 3D Scanner is a multi-functional handheld device that combines advanced laser and infrared scanning technologies to accurately capture detailed objects in a wide range of formats. Thanks to its hybrid design, the scanner is capable of working with both blue laser and infrared structured illumination, making it especially versatile in working with a variety of surface types - from glossy to dark - without the use of markers or matting spray. The model is equipped with 22 cross and 7 parallel blue laser lines, which allows you to effectively adapt to different tasks. Cross beams enable fast shape capture of large and medium-sized objects at speeds of up to 660,000 points per second, while parallel lines, with a thickness of just 0.1 mm, are designed for highly detailed scanning - they are particularly good at edges and geometrically complex areas. The maximum measurement speed reaches 3,580,000 points per second, which allows you to speed up your workflow without sacrificing quality. Scanning accuracy starts from an impressive 0.02 mm per meter, and the capture area varies from 270x170 to 630x550 mm, giving ample opportunities for digitalization of both small parts and large objects. At the same time, the minimum permissible size of a scanned object is only 5 mm, and the maximum possible is up to 4 meters, which makes the device suitable for tasks in industry, medicine, design, restoration, archeology or education. Creality Raptor Pro supports color scanning with a high-resolution RGB camera and a 2.3 megapixel 3D camera, allowing you to create full-color 24-bit models with realistic textures. Separately, it is worth noting the NIR scanning function, which is especially effective when working with the body and face: a unique algorithm captures more nuances and can even accurately convey the structure of the hair. Built-in vibration compensation ensures a smooth grip, reducing distortion when working by hand. The compactness and lightweight body combined with the Wi-Fi module make the device easy to use: data transfer occurs wirelessly, and work in any conditions becomes easier and more mobile. The resulting data can be exported in popular formats OBJ, STL and PLY, which allows you to use scanned models in most CAD programs and 3D printing systems. Creality Raptor Pro is precision, speed and flexibility in one device, suitable for both professional tasks and creative projects where it is important to convey the smallest details without unnecessary preparatory steps.
- Connection interface: Wi-Fi, USB-C
- Scanner type: Handheld / Stationary
- Scanning technology: Optical hybrid
- Scanning accuracy: 0.02 mm (0.075 with infrared illumination)
- Volumetric accuracy: 0.02 mm+0.08 mm/m (0.75 mm+0.01 mm/m with infrared illumination)
- Camera resolution: 2.3 MP
- Number of cameras: 2 pcs.
- Scanning area: 270mm x 170mm@300mm (7 laser lines), up to 397mm x190mm@500mm (22 laser lines), 630mm x 550mm@1000mm (infrared illumination)
- Scanning/measurement speed: 420,000 measurements/sec (7 laser lines), 660,000 measurements/sec (22 laser lines), 3,580,000 changes/sec (infrared illumination)
- Working distance to object: 160-400 mm (7 laser lines), 200-550 mm (22 laser lines), 170-1000 mm (infrared illumination)
- Object size range: 5-4000 mm
- Texture/color scanning: Yes
- Light source: Blue laser + NIR (infrared illumination)
- Processor: i7-Gen7 minimum, i7-Gen10 and higher recommended (Windows 10/11 64 bit); Apple M1/M2/M3 (macOS 11.7.7 and above))
- Video card: Nvidia 6 GB minimum, Nvidia 8 GB or higher recommended (Windows 10/11 64 bit)
- RAM: 16 GB minimum, 32 GB or higher recommended (Windows 10/11 64 bit); 16 GB (macOS 11.7.7 and higher)
- Supported file formats: OBJ, STL, PLY
- Compatible OS: Windows, Mac OS
- Software: Creality Scan
- Product dimensions: 215x50x74 mm
- Packaging dimensions: 350x300x150 mm
- Net weight: 0.405 kg
- Gross weight: 3 kg
