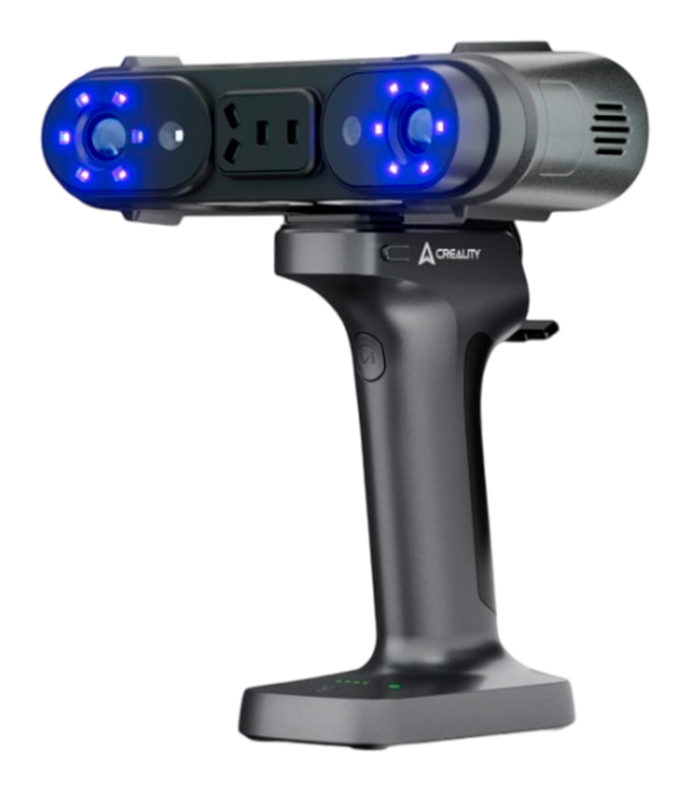

3D scanner Creality Sermoon X1
The Creality Sermoon X1 3D scanner sets new standards in industrial 3D scanning, offering wireless scanning freedom and the highest accuracy. The scanner provides excellent measurement accuracy of 0.02 mm + 0.04 mm/m, which meets the most stringent requirements of the manufacturing industry. Built-in photogrammetry technology eliminates the need for tags and eliminates errors when working with large objects. Creality Sermoon X1 is durable and stable thanks to its one-piece body. The combination of a lightweight design with exceptional structural strength gives the scanner superior rigidity and thermal stability so every scan is completed with absolute precision. Creality Sermoon X1 copes with tasks of varying complexity thanks to several operating modes. Single laser scanning mode captures 3D data from hard-to-reach areas such as deep holes, narrow crevices and recesses. 7 laser lines are available for detailed scanning of areas. NIR structured light technology allows you to work without markers even on complex textured surfaces. Sermoon X1 uses speckle matching-based 3D imaging to enable fast and direct scanning without preparation. The versatility of the Creality Sermoon X1 is impressive: using stereo lines of infrared structured light, it is capable of digitizing objects ranging in size from 5x5 mm² to 4000x4000 mm². This makes it easy to scan engineering parts, molds, the human body, automotive components and more. Complete freedom of action is provided by advanced Wi-Fi 6 technology with increased data transfer speeds of up to 4.7 Gbps. The X1 offers up to 3 hours of battery life, easily adapting to a wide variety of measurement conditions. To scan objects in color, the scanner is equipped with a high-performance Qualcomm ISP processor.
- Connection interface: Wi-Fi, USB-C
- Scanner type: Handheld
- Scanning technology: Optical hybrid
- Scanning accuracy: 0.02 - 0.05 mm
- Volumetric accuracy: 0.02+0.06 mm/m when scanning with laser, 0.05+0.1 mm/m when scanning with infrared light
- Camera resolution: 2.3 MP
- Number of cameras: 2 pcs.
- Accuracy: 0.02 mm
- Minimum scanning area: 270x170 mm
- Maximum scanning area: 665x574 mm
- Scan Modes: High Speed, High Precision Mode, Infrared Scan Mode
- Working distance to object: 150 - 1000 mm
- Object size range: 5 - 4000 mm
- Texture/color scanning: Yes
- Light source: 1 blue laser line, 7 laser lines, NIR
- Compatible OS: Windows, Android
- Software: CrealityScan
- Product dimensions: 215x50x74 mm
- Packaging dimensions: 350x300x150 mm
- Net weight: 0.405 kg
- Gross weight: 3 kg
