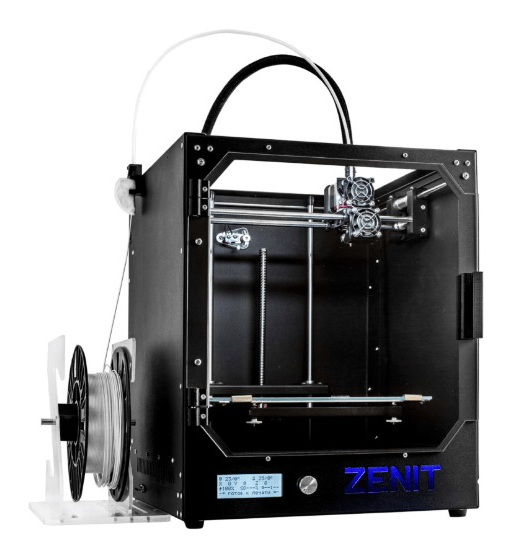

3D printer ZENIT 3D HT
The ZENIT HT 3D printer is a device from a Russian manufacturer that supports high-temperature printing with plastic. The advanced basic printer model is suitable for production, business and education. The main changes concerned the increase in the heating temperature of the extruder, as well as the inclusion of the auto-calibration function of the desktop. This allows you not to spend a lot of time preparing equipment for work and create high-quality products with high accuracy. However, the manufacturer has provided special screws for manual table adjustment. The printer body has a closed design and is made of metal. A clear acrylic insert helps you monitor the printing progress. The ability to maintain high temperatures in the printing area allows you to work with different types of plastic and achieve high-quality results. The printer is equipped with one extruder with a heating temperature of 410 C. Rail guides ensure smooth movement of the print head and uniform filament layering. The device is equipped with a backlit LCD screen, which allows you to conveniently change print settings offline. Data transfer is possible using a USB cable, as well as via an SD card. Included with the printer, the manufacturer offers RepetierHost software, which allows you to prepare 3D models for printing. The device is also compatible with other popular slicers. The high-temperature printing model allows you to create products from ABS, HIPS, FLEX, PVA and other plastics, as well as print parts with supports. Simple controls, high speed and accuracy of operation allow you to print high-quality parts.
- Printing technology: FDM
- Number of extruders: 1
- Size of the model construction area: 240x215x220 mm
- Maximum operating temperature of the extruder: 410 C
- Minimum layer height: 0.015 mm (15 microns)
- X, Y axis positioning accuracy: 0.04 mm (40 microns)
- Z axis positioning accuracy: 0.01 mm (10 microns)
- Maximum print speed: 50 cm3 per hour (for 0.3mm nozzle)
- Maximum print head movement speed: 300 mm per second
- Diameter of the nozzle installed in the printer: 0.4 mm
- Automatic table calibration: Yes
- Motherboard: 32 bit, 180 Mhz
- Printing plastic type: 1.75mm (ABS, PLA, PVA, HIPS, Flex Nylon and others)
- Software: RepetierHost, Slic3r
- Connectivity and peripherals: USB-B, WiFi, Ethernet (RJ-45), SD card, USB stick
- Mains power and power consumption: 220V, 50Hz, 350 W
- Overall dimensions of the printer (W x D x H): 370x360x460 mm
- Maximum height (with train): 660 mm
- Printer weight: 20 kg
