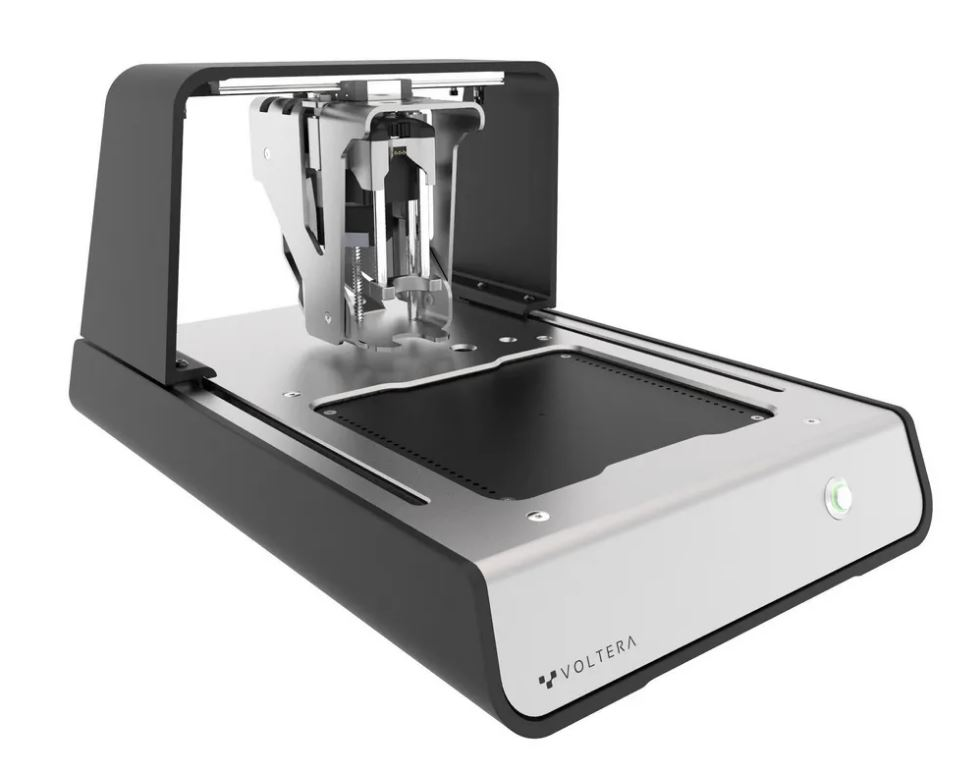

Voltera V-One 3D printer
Voltera V-One is a multifunctional complex for 3D printing of two-layer printed circuit boards directly on the desktop. Making one board with Voltera V-One takes about 1 hour. With amazing ease of use and a compact design, V-One dramatically increases productivity in research, development and training. V-One includes all the accessories you might need to get started with the device. The environmentally friendly process of printing electronic circuit boards, without the use of etching methods with toxic chemicals, makes the device suitable for work not only in a laboratory environment, but also in an office or classroom. All programs occur automatically; the operator only needs to change attachments and install board components. For any non-standard tasks, individual print profiles can be configured by the operator in the V-One program.
- Technology: Direct printing
- Scope of application: Prototyping, production
- Maximum print bed temperature: 240°C
- Maximum board thickness: 3mm
- Minimum track width: 0.2 mm
- Minimum element size: 0.5 mm
- Working chamber: 135 × 114 mm
- Z-axis resolution: 0.625 µm
- X and Y axis resolution: 10 µm
- Layer thickness from: 20 microns
- File formats: Gerber
- Interfaces: USB
- Operating systems: Mac OSX 10.11 and higher, Windows 7 (64 bit) and higher
- Power supply: 100-120V, 200-240V
- Power consumption: 575 W
- Dimensions, mm: 400 × 260 × 210
- Weight, kg: 7
