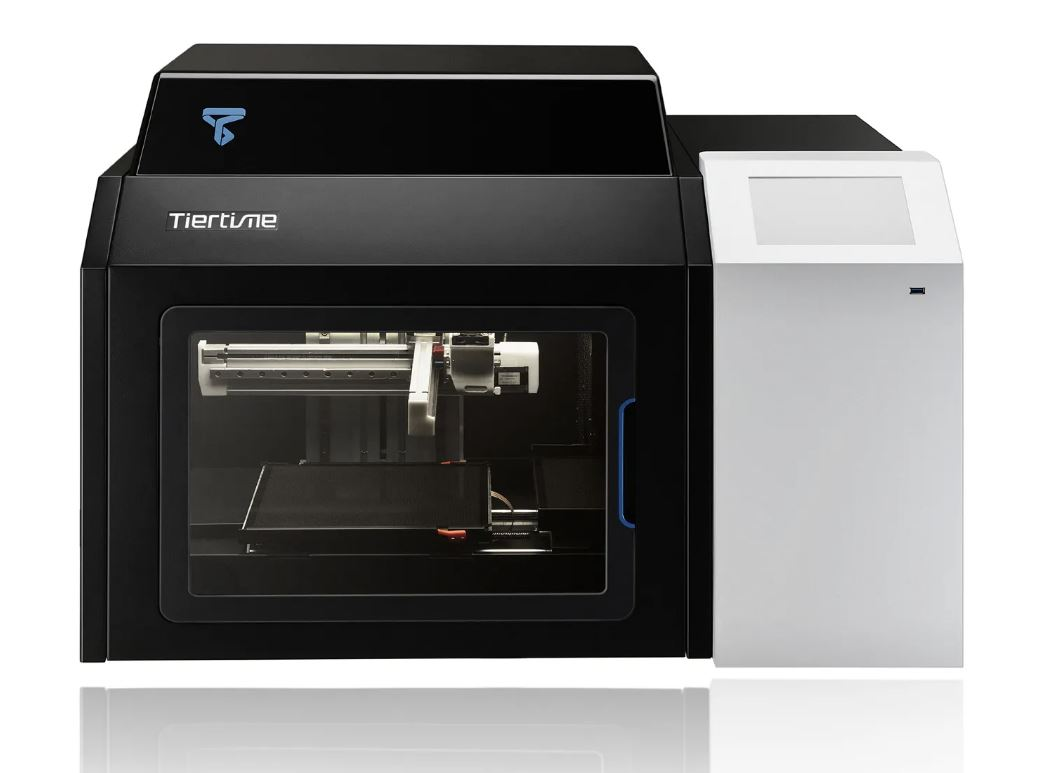

3D printer Tiertime X5
The Tiertime X5 FDM printer is a real breakthrough in the field of 3D printing. This is reliable equipment that can ensure high repeatability of products. The key feature of Tiertime X5 is 12 auto-changeable desktops. This allows for continuous printing with minimal user intervention. Tiertime X5 is equipped with an innovative system of interchangeable desktops. As a result, the device is capable of continuously printing almost indefinitely, and absolutely minimal intervention is required on the part of the operator. Imagine the model printing finished at 3 am. So what! The device will independently extract the finished fingerprint and focus on performing the next task in the queue. This is why you need a new work table. Thus, engineers, teachers, designers, etc. the possibility of continuous 3D printing has appeared. In comparison with standard 3D printer models that are installed in offices and work only during working hours, idle on weekends, using Tiertime X5 allows you to increase productivity by 3 times. The device is capable of printing at night and even on weekends. Has optional specialized print heads. Extruders are capable of printing even the most complex filaments. The range of materials includes both ordinary ABS plastic and engineering materials, complex polycarbonate threads, nylon and even elastomers. The printer is equipped with an all-metal structure with high-quality lead screw and linear rails, and the movement is controlled by very precise motors. It took specialists 17 years to develop a high-quality system from scratch that guarantees 100% repeatability of products. And the developers spent more than 10 thousand hours on testing. The volume of toxic emissions during printing is significantly reduced due to a double filtration system. To achieve this, Tiertime X5 is equipped with a HEPA filter and an activated carbon filter.
- Printing technology: FDM
- Thread diameter: 1.75mm
- Material Type: ABS, PLA, others
- Construction area size: 180x230x200 mm
- Number of extruders (print heads): 1
- XY axis positioning accuracy: 7 microns
- Z-axis positioning accuracy: 1.5 microns
- Platform heating temperature: Max. 100℃
- Layer thickness: 0.05/ 0.1/ 0.15/ 0.2/ 0.25/ 0.3/ 0.35/ 0.4 mm
- Nozzle Diameter (mm): 0.2mm, 0.4mm, 0.6mm, 0.5mm (TPU)
- Accuracy: ±0.1mm
- Extruder operating temperature: up to 299℃
- Extruder moving speed: 200 mm/sec
- Coil compartment capacity: 0.5-1 kg
- Spool holder capacity: 0.5-2kg
- Display: 7" color LCD display
- Wi-Fi or other wireless network: Yes
- Connection interface: LAN, USB, Wi-Fi
- Software: UP Studio version 2.5 or later
- Operating systems: Mac OS 10.10, Windows 7 (SP1) or later (32 bit and 64 bit)
- Supported file formats: .up3, .ups, .tsk, .stl, .obj, .3mf, .ply, .off, .3ds
- Calibration: Manual
- Print platform: Heated, perforated
- System requirements: OpenGL: 2.0, RAM: minimum 4GB
- Power supply: 110-240VAC，50-60Hz，220W
- Weight: 50 kg
- Dimensions: 850 x 625 x 520 mm
- Country of origin: China
- Warranty: 12 months
